Home > Products > Rail Mounted Terminal Blocks > 25.0mm , AWG 2 - 4 / 0 , Din Rail Terminal Blocks With Right Angle Wire Inlet

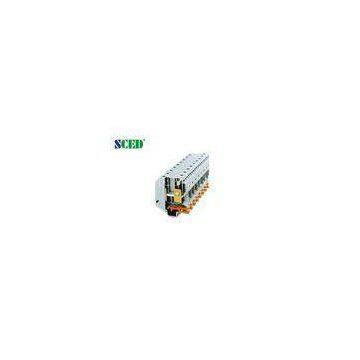

25.0mm , AWG 2 - 4 / 0 , Din Rail Terminal Blocks With Right Angle Wire Inlet
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Single Level Barrier PCB Terminal Block Pitch 9.525mm 300V 20A , 2P - 24P
-
20.0mm Din Rail Mounted Terminal Blocks , High Current PCB Terminal Block 600V 150A
-
8.255mm PCB Terminal Block 2-32P , 300V 20A Barrier Type Terminal Block
-
15.2mm , 600V 115A Din Rail Mounted Terminal Blocks For Industry Control
-
27 x 2 Pin Barrier Terminal Block , Double Levels Power Terminal Blocks Pitch 8.20mm
-
width 12.2mm AWG 22 - 4 Grey Din Rail Terminal Blocks for Electric Lighting 600V 85A
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TR-H95 |
Product Description
Certification:UL, CE
Parameter and Drawing Specifications:
?
|
Description??????????????????? Color |
Type |
|
Terminal?????????????????????? Grey? |
TR-H95 |
|
End Cover????????????????????? Grey? |
|
|
Fixed Bridge |
EB 2-25/TR-H ???????Imax: 232A |
|
Insertion Bridge |
|
|
Separating Plate |
|
|
Partition Plate |
|
|
Zack Strip????????????????????? White |
ZB10 |
|
Screwdriver |
|
|
Rail Material |
aluminum |
|
Dimensions???????????????????????????? mm |
25/83 |
|
Height (U35: 7.5/U35: 15G 32)????????????? mm |
97.5/95.5 |
|
Screw / Torque?????????????????????????? Nm |
M8 / 15-20 |
|
Stripping Length????????????????????????? mm |
33 |
|
IEC Technical Data |
|
|
Max. Load Current / Cross Section???????? A / mm2 |
???????? ????232 / 95 |
|
Rated Surge Voltage / Contamination Class??? KV / - |
????????????? 8 / 3 |
|
Surge Voltage Category |
?????????????? Ⅲ |
Detailed product Description:
?
Terminal Width: 25.0mm, 600V 230A, AWG:2-4/0, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks?
■Right angle wire inlet;? □Vertical wire inlet;? □45 degree wire inlet
■Single Deck;? □Double decks;? □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
How to order:
?
?
?
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
?
Competitive Advantage:
?
