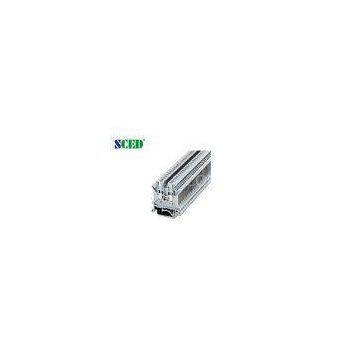

5.2mm Width Rail Mounted Terminal Blocks , 600V 20A AWG 28 - 12 Din Rail Terminal Block
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
47.00mm High Current Rail Mounted Terminal Blocks 600V 300A for Frequency Converters
-
200A 600V High Current Rail Terminal Connectors , 24P Power Terminal Block 36.00mm Pitch
-
600V 240A PCB Mount Terminal Block Connector , Power Terminal Blocks 36.00mm Pitch
-
600V 175A Barrier Rail Mounted Terminal Blocks Connectors Pitch 32.00mm 2P - 20P
-
Pitch 19.00mm High Current Rail Mounted Terminal Block Connectors 600V 80A
-
25.00mm 600V 101A PCB Rail Mounted Terminal Blocks With Right Angle Wire Inlet
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TR-3N |
Product Description
Certification:UL, CE
Detailed product Description:
?
5.2mm Width Rail Mounted Terminal Blocks, 600V 20A AWG 28-12 Din Rail Terminal Block,Compact Din Rail Mount Terminal Blocks ?
?
■Right angle wire inlet;? □Vertical wire inlet;? □45 degree wire inlet
■Single Level;? □Double levels;? □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
?
How to order:
?
?
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
?
??
Parameter and Drawing Specifications:
?
Description??????????????????? Color | Type |
Terminal?????????????????????? Grey? | TR-3N |
End Cover????????????????????? Grey? | D-TR-3/16 |
Fixed Bridge | FBI 10-5??? ?????Imax: 30A |
Insertion Bridge | EBL 10-5? ??????Imax: 24A |
Separating Plate | TS-K |
Partition Plate | ATP-TR |
Zack Strip????????????????????? White | ZB5 |
Screwdriver | SZS0.6×3.5 |
Rail Material | aluminum |
Dimensions???????????????????????????? mm | 5.2/42.5/2 |
Height (U35: 7.5/U35: 15G 32)????????????? mm | 47/54.5/52 |
Screw / Torque?????????????????????????? Nm | M3 / 0.6-0.8 |
Stripping Length????????????????????????? mm | 8 |
IEC Technical Data | |
Max. Load Current / Cross Section???????? A / mm2 | 32 / 4 |
Rated Surge Voltage / Contamination Class??? KV / - | 8 / 3 |
Surge Voltage Category | Ⅲ |
?
Competitive Advantage:
?
