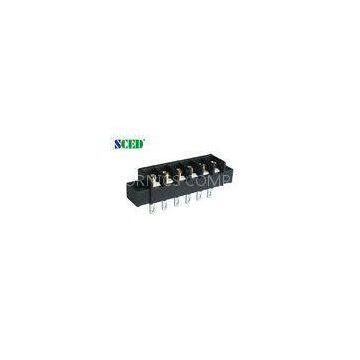

2P - 22P 7.62mm 300V 10A Barrier Terminal Block For PCB , Frequency Converters

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCED		Place of Origin	China
Model Number	TB762-02F-D3

Product Description

Delivery Time:7-20 working days
Certification:UL, CE

Competitive?Advantage:
?

1.?Stable?good?quality

2.?Competitive?price

3.?Quickly?response

4.?Full?range?products?for?selection

5.?Flexible?to?design?the?exact?part?per?customers’?demand
?
?
2P - 22P 7.62mm 300V 10A Barrier Terminal Block For PCB, Frequency Converters
?
Parameter?and?Drawing?Specifications:
?

UL Technical Data	B	C	D
Rated Voltage / Current????????????? V/A	300/10		300/10
Wire Range?????????????????????? AWG	14-22		14-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current????????????? V/A	250 / 24	320 / 24	400 / 24
Rated Surge Voltage???????????????? KV	4	4	4
Rated Connecting Capacity?????????? mm2	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter??????????????? ?mm	1.2x3.4
Stripping Length??????????????????? mm	7-8
Screw / Torque??????????????????? / lbf.in	M 3 / 5-7

?
■Right?angle?wire?inlet;??□Vertical?wire?inlet;??□45?degree?wire?inlet
■Single?Level;??□Double?levels;??□Triple?levels
Standard?color:?Black.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?the?
color?you?want.
Barrier?terminal?blocks,?Power?terminal?blocks,?Electrical?terminal?Blocks,?Terminal?blocks?suppliers
?
?
Applications:
?
PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?
Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?Military,?
Elevator,?etc..
?
?
How?to?order:
?
?
