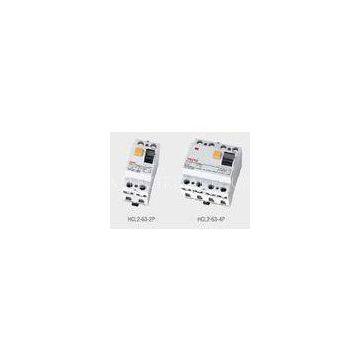

IEC 1008 Earth leakage Residual Current Circuit Breaker with High breaking capacity
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Indoor Home electric Earth leakage circuit breaker for main power with 2 / 4 Pole
-
Electrical Miniature Residual Current Circuit Breaker with CE Certification
-
25 amp / 40a / 63A Residual Current Circuit Breaker , Earth leakage circuit breakers for generator
-
2P 4P Ajustable Earth Leakage Circuit Breaker / ELCB with push button for industrial
-
220V 50Hz / 60Hz Safety AC Magnetic Contactor for electromagnetic starter / motor
-
IEC 60947-4 Electrical AC Magnetic Contactor with 3 pole to break electric circuits
Product Details
| Brand Name | VECAS | Place of Origin | China | |
| Model Number | HCL2-63 |
Product Description
Certification:CE
IEC 1008 Earth leakage Residual Current Circuit Breaker with High breaking capacity
Technical data
|
Standard |
IEC1008,GB16916,BS EN61008 |
|
Rated Voltage (Un) |
2pole:230V AC |
|
4pole:230V AC |
|
|
Rated Current (In) |
25,40,63A |
|
Rated residual operating current (l△n) |
30,100,300,500mA |
|
Rated residual non-operating current (l△no) |
0.5 l△n |
|
Residual current off-tine |
≤0.1s |
|
Minimum value of rated making and breaking capacity (lm) |
1KA |
|
Rated conditional short-circuit current (lnc) |
ln=25,40A Inc=1500A |
|
ln=63A Inc=3000A |
|
|
Endurance |
on load:2000cycles |
|
off load:2000cycles |
INSTALLATION
On symmetrical DIN rail
