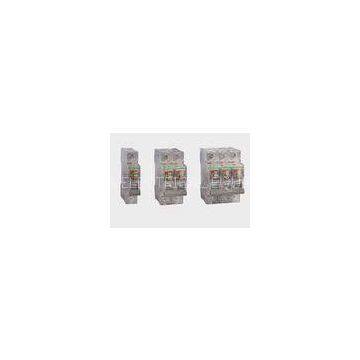

1P 2P 3P Waterproof Mini Circuit Breaker for home / industrial with Icn 6000A

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	VECAS		Place of Origin	China
Model Number	HCB-NGP

Product Description

Delivery Time:WITHIN 30DAYS AFTER L/C OR 30% DEPOSIT RECEIVED
Certification:CE

1P 2P 3P Waterproof Mini Circuit Breaker for home / industrial with Icn 6000A

Quick Detail:

Place of Origin: China?????? Brand Name: VECAS???? Certificate:CE Electricity Type: AC???????? Phase::3 ???Pole: 4 Rated voltage: ?AC240/415V?? Rated current :1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63

Specifications and Feature :

■? Protection against both overload and short circuit
■? High breaking capacity
■? Contact position indication
■? Applicable to terminal and pin/fork type busbar connection

Technical Data :

Pole No.	1, 2, 3, 4
Rated voltage	AC 240/415V
Rated current (A)	1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
Tripping curve	B, C, D
Rated breaking capacity (Icn)	4500A, 6000A
Rated frequency	50/60Hz
Rated impulse withstand voltage	6.2kV
Electro-mechanical endurance	6000
Contact position indication
Connection terminal	Screw terminal
Pillar terminal with clamp
Connection capacity	Rigid conductor up to 25mm2
Fastening torque	2.0 Nm
Installation	On symmetrical DIN rail 35mm
Panel mounting

Our factory obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification, SEMKO and CE certification, etc. ?We have nearly 20 years experience in producing and developing for electirc equipment. And win a good reputation from our customers.
