Mobile tripped Molded Case Circuit Breakers for Overload / short circuit protection

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 0 per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	VECAS		Place of Origin	China
Model Number	HNSX

Product Description

Delivery Time:WITHIN 30DAYS AFTER L/C OR 30% DEPOSIT RECEIVED
Certification:CE

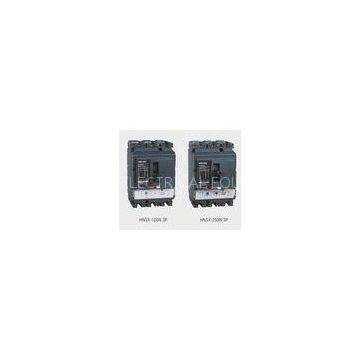

Mobile tripped Moulded Case Circuit Breaker for Overload / short circuit protection

Application

HNSX Series moulded case circuit breaker is one of new type breakers which our company adopts international advanced design, manufacture technology to develop. The rated insulating voltage is 950V. Suitable for AC 50Hz (60Hz). Rated
working voltage 690V or below, rated working current is 12.5A to 630A of circuit and used in distributing electric energy. Non-frequent making and breaking in the normal conditions and protecting when circuit and installation are overload,
short circuit and lacking voltage. Rated shell-rack and the breaker whose current is under 400A, take protection effect when mouse cage motor\'s non-frequent start, breaking off working and protecting form overload, short circuit and lacking voltage. The product conforms to GB14048.2, IEC 60947-2 standards.

Main Technical Speci?cations

Type	Rated current of trip (In A)	Pole number	Rated insulating voltage (V)	Rated operating distance (mm)	Arcing-over distance (mm)	Uitimate short circuit breakering capacity (kA)	?
?
HNSX-100D	12.5,5,16,20 25,32,40,50 63,80,100	3P 4P	950	≤690	?	18
HNSX-100N	25
HNSX-100H	70
HNSX-100L	150
HNSX-160D	16,20,25,32, 40,50,63,80, 100,125,160	25
HNSX-160N	35
HNSX-160H	70	?
HNSX-160L	150	?
HNSX-250D	160,180, 200,225, 250	0	25	?
HNSX-250N	36	?
HNSX-250H	70	?
HNSX-250L	150	?
HNSX-400D	200,225, 250,300, 315,400	25	?
HNSX-400N	36	?
HNSX-400H	70	?
HNSX-400L	150	?
HNSX-630D	315,350, 400,500, 600,630	35	?
HNSX-630N	45	?
HNSX-630H	70	?
HNSX-630L	150	?

Working Conditions
