1P+N mobile electric circuit breaker , industrial generator circuit breaker AC 230V

FOB Price

Negotiable / Meter

1 Meter(Min.Order)

Supply Ability 0 Meter / Meters per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	VECAS		Place of Origin	China
Model Number	HCB-32-N

Product Description

Delivery Time:WITHIN 30DAYS AFTER L/C OR 30% DEPOSIT RECEIVED
Certification:CE

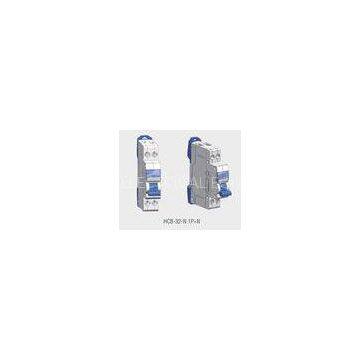

1P+N mobile electric circuit breaker , industrial generator circuit breaker AC 230V

Quick Detail:

Place of Origin: China?????? Brand Name: VECAS???? Certificate:CE Electricity Type: AC???????? Phase::3 ???Pole: 4 Rated voltage: ?AC240/415V?? Rated current :1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63

Specifications and Feature :

■? Protection against both overload and short circuit
■? High breaking capacity
■? Contact position indication
■? Applicable to terminal and pin/fork type busbar connection

Technical Data :

Pole No.	1P+N?
Rated voltage	AC 230V
Rated current (A)	3, 6, 10, 16, 20, 25, 32?
Tripping curve	C
Rated breaking capacity (Icn)	4500A
Rated service breaking capacity(Ics)	4500A
Rated frequency	50/60Hz
Electro-mechanical endurance	4000
Connection terminal	Pillar terminal with clamp
Connection capacity	Rigid conductor up to 25mm2
Fastening torque	1.2 Nm
Installation	On symmetrical DIN rail 35mm
Panel mounting
