Product Details

Brand Name	VECAS		Place of Origin	China
Model Number	HM1

Product Description

Delivery Time:WITHIN 30DAYS AFTER L/C OR 30% DEPOSIT RECEIVED
Certification:CE

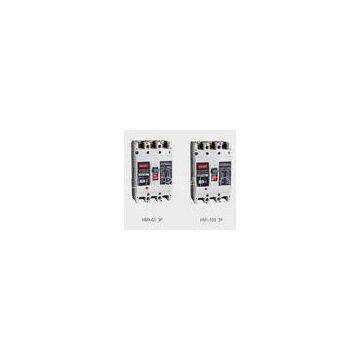

High breaking capacity Moulded Case Circuit Breaker , industrial generator circuit breakers

Application

HM1 Series of moulded case circuit breaker is one of our new type products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 660V and used for circuit of A.C.50Hz, rated
operating voltage AC 380V. (Or below), rated operating current up to 800A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the products are capable
of preventing damage of circuits and supply units.

Classi?cation

Accord to product poles. Two kings of three-pole are provided? The neutral pole(N pole) of four poles has four types

Speci?cations

Type	Rated current of trip (In A)	Pole number	Rated insulating voltage (V)	Rated operating distance (mm)	Arcing-over distance (mm)	Uitimate short circuit breakering capacity (kA)	?
?
HM1-63L	6,10,16,20, 25,32,40, 50,63	3P 4P	660V	380V	0	25
HM1-63M	0	50
HM1-100C	0	25
HM1-100L	10,16,20,25 32,40,50,63 80,100	0(≤50)	35
HM1-100M	0(≤50)	50
HM1-100H	0(≤50)	85
HM1-225C	100,125,160 180,200,225	≤50	25
HM1-225L	≤50	35
HM1-225M	≤50	50
HM1-225H	≤50	85
HM1-400C	225,250,315 350,400	≤50	35
HM1-400L	≤50	50
HM1-400M	≤100	65
HM1-630C	≤100	35
HM1-630L	400,500,600	≤100	50
HM1-630M	≤100	65
HM1-630H	≤100
