High breaking capacity Mini Circuit Breaker , 3 phase MCB switch with 6 , 10 , 16 , 20 amp

Brand Name	VECAS		Place of Origin	China
Model Number	HCB-AES

Delivery Time:WITHIN 30DAYS AFTER L/C OR 30% DEPOSIT RECEIVED
Certification:CE

?
?
High breaking capacity Mini Circuit Breaker , 3 phase MCB switch with 6 , 10 , 16 , 20 amp
?
?
Quick Detail:
?
?

Place of Origin: China?????? Brand Name: VECAS???? Certificate:CE Electricity Type: AC???????? Phase::3 ???Pole: 4 Rated voltage: ?AC240/415V?? Rated current :1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63

?
?
Description:
?

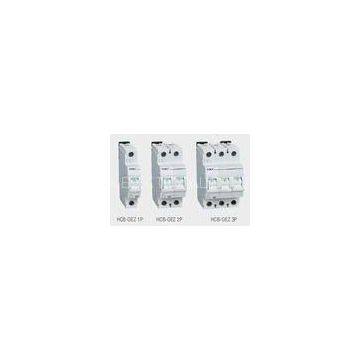

HCB-OEZ Mini Circuit Breaker Speci?cation and Feature :
■? Protection against both overload and short circuit
■? High breaking capacity
■? Contact position indication
■? Applicable to terminal and pin/fork type busbar connection
?
?
Technical Data
?
Pole No. 1, 2, 3, 4 Rated voltage AC 240/415V Rated current (A) 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 Tripping curve B, C, D Rated breaking capacity (Icn) 4500A, 6000A Rated frequency 50/60Hz Rated impulse withstand voltage 6.2kV Electro-mechanical endurance 6000 Contact position indication Connection terminal Screw terminal Pillar terminal with clamp Connection capacity Rigid conductor up to 25mm2 Fastening torque 2.0 Nm Installation On symmetrical DIN rail 35mm
?
?
Specifications and Feature :

■ Protection against both overload and short circuit
■ High breaking capacity
■ Contact position indication
■ Applicable to terminal and pin/fork type busbar connection

Technical Data :

Pole No.	1, 2, 3, 4
Rated voltage	AC 240/415V
Rated current (A)	1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
Tripping curve	B, C, D
Rated breaking capacity (Icn)	4500A, 6000A
Rated frequency	50/60Hz
Rated impulse withstand voltage	6.2kV
Electro-mechanical endurance	6000
Contact position indication
Connection terminal	Screw terminal
Pillar terminal with clamp
Connection capacity	Rigid conductor up to 25mm2
Fastening torque	2.0 Nm
Installation	On symmetrical DIN rail 35mm
Panel mounting

Our factroy is founded in 1995, with more than 3500M2 space, 350 emplyees. Our factroy is one of the biggest MCB manufacturer in China. And we have nearly 20 years experience in doing foreign business and win a good reputation from our customers.
