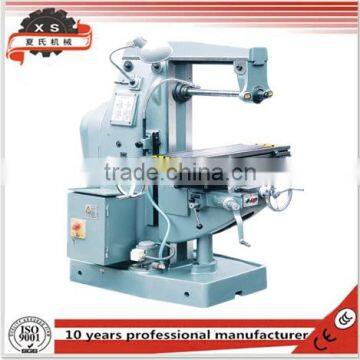

X6125A universal milling machine price with knee type
- 300 Set / Sets per Month
- Shanghai Shenzhen Guangzhou Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
-
32 tools Gantry Type CNC Plano Milling Machine for sale GMC2040
-
X6236A Universal Milling Machine Price with Swivel Head
-
Turret Type Milling Machine for sale X6323
-
CNC horizontal knee-type milling machine for sale XK6032
-
drilling and milling machine for sale ZX7550CW
-
ZX6332A universal drilling and milling machine with swivel head
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | Xiashi | Model Number | X6125A | |
| Type | Universal | CNC or Not | Normal | |
| Voltage | Customer Requirement | Power(W) | 4kw | |
| Dimension(L*W*H) | 1880*1700*1700mm | Weight | 2200kg | |
| Certification | CE ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
X6125A universal milling machine price with knee type
Introduction
X6125A Milling Machine is one kind middle and small type metal cutting milling machine, and is suitable for the disk milling cutter, the angular cutter, the form cutter and the end cutter, can the milling plane, the incline, the perpendicular plane and the trench, and so on, after the vertical milling head is equipped, this machine may do the multi-direction milling work. If the rotary table is equipped in this machine, it may do the milling ring-like trench and the circular arc curve. In addition, if this machine is equipped with dividing head, it may make the modulus m=3mm following straight tooth, the helical tooth, the bevel gear milling work, and so on.
Technical parameter
Worktable Size | mm | 250×900 | |
T Slot× Width × Slot Distance | mm | 3×14×54 | |
Worktable | Longitudinal travel X | mm | 480 |
Cross travel Y | mm | 165 | |
Vertical travel Z | mm | 300 | |
Max. Rotary Angle of Worktable |
| ±45º | |
Milling Arbor Diameter | mm | φ22, φ27 | |
Distance Spindle Center to Table | mm | 60-360 | |
Spindle Taper |
| MT3 or 7:24 30# | |
Spindle Speed Series |
| 12 | |
Spindle speed range | r/min | 32~1250 | |
Distance from Spindle Center to Cantilever | mm | 160 | |
Table Feed Motor Series |
| 12 | |
Worktable Feeding | Longitudinal X | mm/min | 5.6~181 |
Cross Y | mm/min | 11.3~366 | |
Vertical Z | mm/min | 4.5~146.2 | |
Main Motor Power | Kw | 2/2.4 | |
Cooling Pump Motor Power | Kw | 0.12 | |
Cooling Pump Current Capacity | L/min | 25 | |
Overall Size | mm | 1400×1330×1478 | |
Package Size | mm | 1500×1310×1760 | |
Machine’s Weight | Kg | 1300 | |
Power Supply | V/Hz | 380/50 | |
Picture details for you reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
