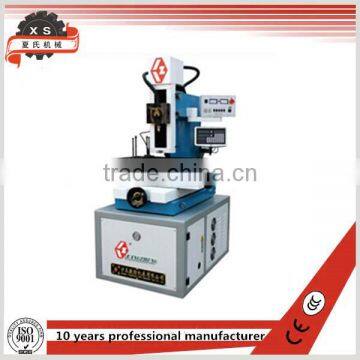

EDM Hole Drilling Machinefor sale DD703.30
- 300 Set / Sets per Month
- Shenzhen
- T/T Credit Card
You May Like
-
X6236A universal milling machine price with swivel head
-
die sinking forming EDM machine D7140
-
D7150 CNC EDM Machine ,High Precision edm spark erosion With Low Price
-
Z3080X25 hydraulic clamping radial drilling machine
-
XK6040 knee type 3 axis cnc milling machine price for sale
-
Z3050x16 radial drilling machine price with hydraulic type
Product Details
| Place of Origin | Guangxi, China | Brand Name | Xiashi | |
| Model Number | DD703 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Mainly used for processing unmanageable deep pinhole such as threading hole, drilling hole on ultra-hard conducting material for wire cutting on, nozzle opening of oil pump,spinneret orifice of spinning die, oil way of hydropneumatic components and cooling hole of engine.
1.Drilling diameter from 0.3mm to 3mm. The maximum depth ratio could be 300:1.
2.Auto deep control, blind hole can also be maken.
3.Precision ( hole straightness) is less than 0.04 mm.
4.Can drill on oblique and curved surface directly.
5.Digital readout 3 axis (X, Y, Z).
6.Fast processing speed and low consumption.
7.Can use water as coolant, low cost and no pollution.
Model | DD703.30 | DD703.40 | DD703.50 |
Electrode diameter(mm) | Φ0.3-Φ3.0 | Φ0.3-Φ3.0 | Φ0.3-Φ3.0 |
Spindle stroke(mm) | 200 | 400 | 500 |
Servo stroke(mm) | 300 | 300 | 600 |
Max.adjusting speed of spindle(mm) | 200 | 200 | 200 |
Turn head (C axis)speed(mm/min) | 20-120 | 20-120 | 20-120 |
Working table size(mm) | 360x480 | 1000x540 | 1000x700 |
X-Y stroke(mm) | 300x400 | 400x630 | 500x630 |
cess current(A) | 30 | 30 | 30 |
Max.output power(W) | 2.5 | 2.5 | 2.5 |
Power (V/Hz) | 380/50 | 380/50 | 380/50 |
Capacity of working fluid (L) | 25 | 25 | 25 |
ure of working fluid(MPa) | 7 | 7 | 7 |
Dimension(LxWxH)(mm) | 1060x750x1700 | 1600x1300x1500 | 1950x1500x1600 |
Weight(kg) | 600 | 1400 | 2500 |
