W27YPC-76 CE ISO PLC Hydraulic Bicycle Frames tube bending machine
- shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
Full-automatic hydraulic metal pipe bender machine,pipe/tube bending machine SB18CNC
-
turret busbar processing machine XS-303K
-
Full-automatic hydraulic metal pipe bender, pipe bending machine SB10CNC
-
Full-automatic hydraulic metal pipe bender machine,pipe bending machinevb SB50CNC
-
SBS-1.5*3200 hand folding machine / manual folder machine
-
DW-32 Full oil hydraulic automatic double head bender
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Model Number | W27YPC-89 | Machine Type | Pipe and Tube Bending Machine | |
| Raw Material | Sheet / Plate Rolling | Material / Metal Processed | Carbon Steel | |
| Power | Hydraulic | Automation | Automatic | |
| Certification | ISO 9001:2000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specification
PLC Hydraulic 3 inch Tube Pipe Bender,
Deliver 10 days;
14 months after-sale
service;
24hrs+7days service;20 container plywood
Feature
pipe bender,tube bender, pipe bending machine
1. Machine bed reinforcement design; Strength and rigidity guaranteed, no permanent distortion
any more. Machine-bed extension for longer parts.
2. The main axis and transmission chainwheel are casted, processed, hopped together,
strengthend structure. Double hydra-cylinder design, reset fast.
3. Throttle buffer design, reset and bend in precision and efficiency, DEXI patent.
4. Four connecting rods design, load and unload easier.
5. Full hydraulic drived: Hydraulic clamp, hydraulic press, hydraulic pipe bending.
6. LCD control panel, separate and moveable; PLC controlled, quiet&stable operation; Pedal
switch for operator convenience.
7. Special accessories provided, eg. Crease-resist device, hydraulic auxiliary device,
multi-ball mandrel.
8. DEXI service assurance.
Technical Paramter
NO. | Parameter Name | Parameter | Unit | Remarks | |
1 | Max torque | 50000 | N.m |
| |
2 | Max bend pipe od*wt | Φ89×8 | mm |
| |
3 | Min bend pipe od | Φ20 | mm | Special dies can bend smaller outside diameter pipe | |
4 | Min bend radius | R50 | mm | Special clamping dies can bend smaller outside diameter pipe | |
5 | Max bend radius | R500 | mm |
| |
6 | Max bend angle | 195 | ° | ||
7 | Bend speed | 3.1 | r/min | Double-cylinder driving, reset fast, domestic initiative | |
8 | Gyration speed | 4.2 | r/min |
| |
9 | Numbers of bend angles | 16 | --- | PLC provided by DELTA | |
10 | Electric motor | Model | Y160M-4 | --- |
|
Power | 11 | KW | |||
Rotating speed | 1450 | r/min | |||
11 | Oil pressure | Size | YB-E32 |
|
|
Oil pressure | 16 | MPa |
| ||
Flowing speed | 35 | L /min | |||
Working pressure | 12 | MPa | |||
12 | Size | 4000*1400*1100 | mm |
| |
13 | Weight | 3.8 | T | ||

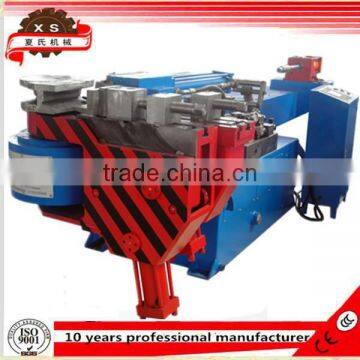

Product pictures
