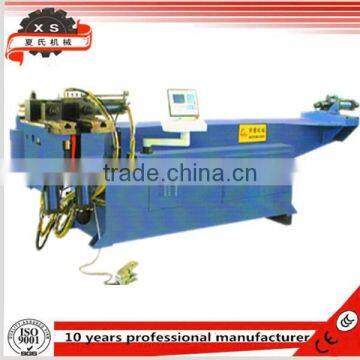

SB-50 single-head hydraulic pipe bender, pipe bending machine
- 300 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
SB-38NC single-head hydraulic pipe bender
-
DW-38 Full oil hydraulic automatic double head pipe bending machine
-
ML-CNC18 three-Axis automatic pipe bender
-
JD-CNC100 CNC servo bending machine
-
SB-75NC single-head hydraulic pipe bender, hydraulic pipe bending machine
-
SB-80 single-head hydraulic pipe bender, pipe bending machine
Product Details
| Place of Origin | Guangxi, China | Brand Name | XiaShi | |
| Model Number | SB-50 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Description
Hydraulic automatic mandrel metal pipe bending machine
Main features: Body by welding; mechanical parts through assembly; imported hydraulic system and electronic control system.
1. Uses the microcomputer control, automatic bending
2. Safety: the emergency stop button on the bending arm
3. Dialogue operation, easy to study and understand
4. High pipe-bending precision up to ±0.1°
5. 1000 groups pipe-bending information storage, all angles work forms a coherent whole.
6. The mandrel automatically in and out, saving much time
7. Suitable for bending steel pipe, stainless steel pipe, copper pipe, aluminum pipe, etc.
8. Can install auxiliary push die, low returning-core function, can bend thin pipes
9. Special fitting: special mold, anti-wrinkle board, auxiliary push installation, etc.
Mechancial Features
(1)Machine is controlled by PLC, hydraulic drive, has a variety of differentbending
angle precast.
(2)Subtitle languages could be chosen according to customers' requirements,
manual opertion.Portable pedal switch has two functions of pulse-on and
emergency stop.
(3) Adopt high-performance hydraulic value components.
(4)Equipped with cooling system, effective control of the working temperature.
(5)The machine with characteristics of convenient opertion, stable performance,
high working efficiency, high safety factor, is the ideal equipment of fittings
processing industry.
Technical parameter
Model | >SB38/ SB38NC | SB50/SB50NC | SB63/SB63NC | SB75/80 SB75NC/80NC |
The maximum wear core length (>a) | >1700mm | 2210mm | 2210mm | 2700mm |
max bending radius | >200mm />200mm | 250mm/220mm | 250mm/220mm | 300mm /250mm |
max. bending angle | >185° | >185° | >185° | >185° |
pipe fitting allow the number of bent | >2/9 | >2/9 | >2/9 | >2/9 |
Maximum oil pressure pressure | 12mpa | 14mpa | 14mpa | 14mpa |
Machine weight | 700kg/750kg | 900kg/950kg | 950kg/1000kg | 1700kg/ 1900kg |
Overall dimensions(L,W,H)(CM) | 270x60x125 | 350x70x130 | 350x70x130 | 415x100x115 |
Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
