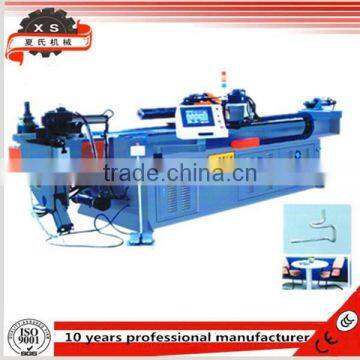

SB63CNC full-automatic hydraulic metal pipe bender

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China	Brand Name	XiaShi
Model Number	SB63CNC	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Features:
Body by welding; mechanical parts through assembly; imported hydraulic system and electronic control.
Using industrial touch screen; English mode menu is simple; high precision, multifunctional

and high degree of automation; each action of machine is controlled by PLC programme control system.

1. Fully automatic and CNC tube bending machine
2. Equipped with 2 or more than 2 programmable axis
3. Feeding: Servo motor control, Rotation: Servo motor control
4. Bending: Hydraulic (NC) or Servo motor
5. PLC or industrial computer control imported
6. Centralized greasing system for moving areas
7. Hydraulic pressure die assist for every bending stack
8. Wiper, clamping and pressure die seats: Hydraulic drive
9.Touch screen system
10. Electric cabinet cooling fan

Technical parameter

Model	SB63CNC	SB75CNC	SB89CNC
Max. applicable Carbon Steel pipe Bending radius of 1.5D Case	Φ63.5X2.0t	Φ76.2X2.0t	Φ88.9X2.0t
Max. feeding stroke(b)	2500mm	2800mm	3000mm
Feeding method	Directly delivery	Directly delivery	Directly delivery
Max.bending diameter	250mm	300mm	300mm
Max.bending angle	185°	185°	185°
Each pipe fittings can be set pipe bending number	16 bending	16 bending	16 bending
Working speed	Bending speed	Max.35º/s	Max.30º/s
Gatling speed	Max.270º/s	Max.180º/s	Max.180º/s
Feeding speed	Max.900mm/s	Max.700mm/s	Max.700mm/s
Accurate	Bending angle	±0.15°	±0.15°
Gatling angle	±0.1°	±0.1°	±0.1°
Feeding length	±0.1mm	±0.1mm	±0.1mm
Data input methods	working value (Y.B.C)	working value (Y.B.C)	working value (Y.B.C)
Gatling servo motor power	750W	750W	750W
Feeding servo motor power	1.5KW	2KW	2KW
oil pressure motor horsepower	10HP	15HP	15HP
Machine weight(kg)	3050kg	4500kg	4900kg
Overall dimensions L.w.H(mm)	450X155X110	570X162X122	570X162X122

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
