Full oil pressure Double head full automatic pipe bender,pipe bending machine DW-38
- 300 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
Single head hydraulic pipe bender, tupe pipe bending machine SB-189NC
-
Single-head hydraulic pipe bender,pipe bending machine SB-63
-
Hot SB75CNC stainless steel cnc pipe making/bending machine pipe bender For Sale
-
Automatic hydraulic metal ring bending machine W24YPC-260
-
single-head hydraulic pipe bender machine, tube bending machine,pipe roller machine SB-168NC
-
Full-automatic hydraulic metal pipe bender machine,pipe bending machine SB89CNC
Product Details
| Condition | New | Model Number | DW-38 | |
| Machine Type | Pipe and Tube Bending Machine | Raw Material | Sheet / Plate Rolling | |
| Material / Metal Processed | Stainless Steel | Power | Hydraulic | |
| Automation | Automatic | Extra Services | Swaging | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Feature
they are divided into standard type and rotating type depending on the different base
structure
standard type:it can do a two dimensional rotation, double head can be arbitrarily adjusted in O-90°
rotating type:it can not do a two dimensional rotation, but double head can be arbitrarily
adjusted in O-90°
Bending angle from 0-185 degrees, but must consider taking material problem.
Adopting LC control, easy to operate and maintain.
Can be divided into total recycle, semi-circle, select Options.
Technical parameter
Model | DW-32 | DW-38 |
oil pressure motor power | 5HP | 7.5HP |
Maximum oil pressure pressure | 100kg/cm² | 140kg/cm² |
Maximum applicable pipe | Φ32x1.6m/mt | Φ38x1.8m/mt |
Applicable bend radius | 26-150m/m | 38-200m/m |
Center range of Double bend | 90-700m/m | 170-1450m/m |
Max. bending angle | 180° | 185° |
Max.number of processing | Φ25x1tube | Φ25x2tube |
Machine overall dimensions | 1200kgs | 1500kgs |
Machine weight | 200x75x130cm | 380x85x160cm |

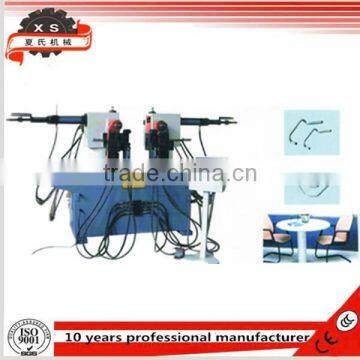

Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
