Home > Products > Milling and drilling machine > Dependable Performance Universal swivel head knee type universal vertical milling machine XJ6225C For Sale
Dependable Performance Universal swivel head knee type universal vertical milling machine XJ6225C For Sale
- 30 Set / Sets per Month
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | xiashi | Model Number | XJ6225C | |
| Type | Universal | CNC or Not | Normal | |
| Voltage | 380v | Power(W) | 0.85 / 1.1kw | |
| Dimension(L*W*H) | 1300*1200*1450mm | Weight | 800kg | |
| Certification | CE ISO | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Dependable Performance Universal swivel head knee type universal vertical milling machine XJ6225C For Sale
Technical parameter
Model | XZ5625 / XJ6225 | XZ5625B / XJ6225B | XZ5625C / XJ6225C |
Table size mm | 250×810 | 250×900 | |
T-slot (number × width × pitch) | 3×14×54 | ||
Table travel X mm | 470 | 500 | 500 |
240 | |||
340 | 320 | ||
Spindle speed range r/min | 140~1375(6) | ||
Spindle taper | Morse No. 3 | ||
Distance from Horizontal milling spindle centerline to the worktable surface mm | 0~335(XJ6225) | 0~335(XJ6225B) | 0~335(XJ6225C) |
Distance lathe bed guideway to worktable center mm | 135~385 | ||
Distance from vertical milling end face to worktable mm | 20~360(XZ5625) | 0~320(XZ5625B) | 0~320(XZ5625C) |
Distance from vertical milling spindle center line to vertical guide surface mm | 130~380(XZ5625) | 130~380(XZ5625B) | 130~380(XZ5625C) |
Feeding speed range X |
| 18~320 | 28~549 |
|
|
| |
|
|
| |
Rapid feed rate X |
|
| 1700 |
Main motor power Kw | 0.85 / 1.1 | ||
Overall dimensions mm | 1300×1200×1630 / 1300×1200×1450 | ||
Machine weight Kg | 740 / 760 | 780 / 800 | 800 / 820 |

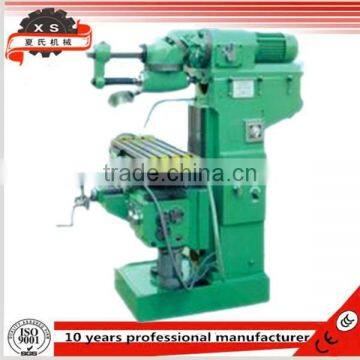

Picture details
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
