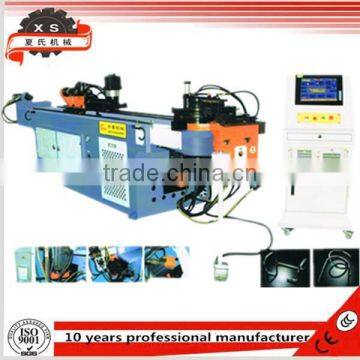

Full-automatic hydraulic metal pipe bender machine,pipe bending machinevb SB50CNC

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Model Number	SB50CNC
Machine Type	Pipe and Tube Bending Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Stainless Steel	Power	Cnc
Automation	Automatic	Extra Services	Swaging
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Features

Body by welding; mechanical parts through assembly; imported hydraulic system and electronic control.
Using industrial touch screen; English mode menu is simple; high precision, multifunctional

and high degree of automation; each action of machine is controlled by PLC programme control system.

1. Fully automatic and CNC tube bending machine
2. Equipped with 2 or more than 2 programmable axis
3. Feeding: Servo motor control, Rotation: Servo motor control
4. Bending: Hydraulic (NC) or Servo motor
5. PLC or industrial computer control imported
6. Centralized greasing system for moving areas
7. Hydraulic pressure die assist for every bending stack
8. Wiper, clamping and pressure die seats: Hydraulic drive
9.Touch screen system
10. Electric cabinet cooling fan

Technical parameter

Model	SB38CNC	SB50CNC
Max. applicable Carbon Steel pipe Bending radius of 1.5D Case	Φ38.1X2.0t	Φ50X2.0t
Max. feeding stroke(b)	2100mm	2400mm
Feeding method	Directly delivery	Directly delivery
Max.bending diameter	200mm	250mm
Max.bending angle	185°	185°
Each pipe fittings can be set pipe bending number	16bending	16bending
Working speed	Max.200º/s	Max.45º/s
Gatling speed	Max.270º/s	Max.270º/s
Feeding speed	Max.900mm/s	Max.900mm/s
Accurate	±0.1°	±0.15°
Gatling angle	±0.1°	±0.1°
Feeding length	±0.1mm	±0.1mm
Data input methods	working value(Y.B.C)	working value(Y.B.C)
Gatling servo motor power	400W	400W
Feeding servo motor power	1.0KW	1.0KW
oil pressure motor horsepower	5HP	7.5HP
Machine weight(kg)	2200kg	2800kg
Overall dimensions L.w.H(mm)	35OX155X105	430X155X105

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
