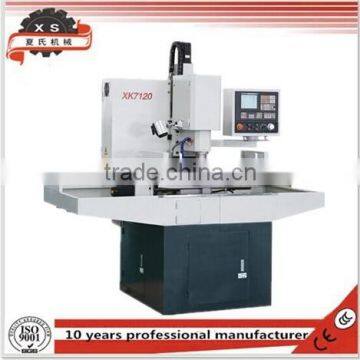

CNC milling machine XK7120

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangxi, China
Brand Name	XiaShi	Model Number	XK7120
Type	Universal	CNC or Not	Normal
Voltage	220v	Power(W)	3.7kw
Dimension(LWH)	170015202260	Weight	1750/1950kg
Certification	ISO9001,CE,3C	Warranty	1Year
After-sales Service Provided	Engineers available to service machinery overseas

CNC milling machine

Small size. good for education.

MAIN FEATURES

·Infinitely variable speed +2-grade-pulley(manual)of spindle, consider both high speed and low speed, large torque.

·Axes XY and Z are driven by precision ball leadscrews, high accuracy, long life.

·Axes XY and Z use sliding guide, hardened surface of guide cooperates with PTFE wearable strip, long life.

·Centralized lubrication of XY and Z.

SPECIFICATIONS
Table size	240×860mm
T-slot(Number-width)	315.875mm
Max. load of table	100kg
Strokes fox X, Y&Z	400,250,390mm
Distance from spindle nose to table surface	440mm
Distance from spindle axis to vertical guideway	330mm
Rapid feed(x/y/z)	3/3/3m/min
Spindle taper	MT3
Spindle speed	504200r/min
Power of spindle motor	1.1KW
Positioning accuracy	±0.015mm
Repositioning accuracy	±0.01mm
Overall dimensions(L×W×H)	1750×1200×1680mm
Machine weight	750kg
