Home > Products > Milling and drilling machine > 2017 deep hole drilling machine Z3063x20 radial drilling machine

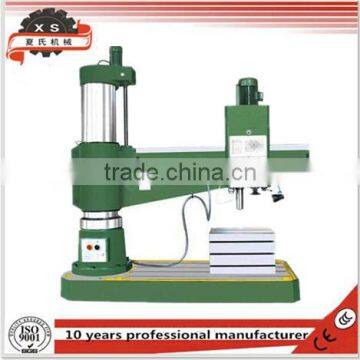

2017 deep hole drilling machine Z3063x20 radial drilling machine
- 300 Set / Sets per Month
- Shenzhen Guangzhou Shanghai Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
-
Z3040X10 Dependable Performance Radial Drilling Machine with low price for sale
-
CNC deep hole drilling machine (gun drilling machine) ZK21103
-
Dependable Performance multi-spindle drilling machine ZXSM-45 for sale
-
Top China Hoston ZK3020L multi spindle CNC Drilling Machine
-
Gantry Type CNC Plano Milling Machine GMC2040
-
universal heavy duty vertical knee-type milling machine X5042B
Product Details
| Condition | New | CNC or Not | Normal | |
| Drilling Speed | Normal Speed | Place of Origin | Guangxi, China | |
| Brand Name | Xiashi | Model Number | Z3063X20 | |
| Voltage | 380V | Power(W) | 5.5kw | |
| Dimension(L*W*H) | 3130*1390*2900 | Weight | 5000kg | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2017 deep hole drilling machine Z3063x20 radial drilling machine
1.Main Application and Applicable Scope
It is used to drill, flare and ream screws φ31.5mm in diameter in cast iron, or to drill, flare and ream holes φ25mm in diameter and tap common screwed holes within M16mm on steel parts. It is largely applicable in cutting and repair of medium and small parts in various industries.
2.Technical Parameters
| Z3063X20 | |
| Max.Drilling Capacity | 63mm |
| Spindle travel | 400mm |
| Distance spindle axis to column surface | 2000/370mm |
| Max.Distance spindle nose to worktable | 1080mm |
| Max.Distance spindle nose to base | 1580mm |
| Spindle taper | MT.5 |
| Spindle speeds range(rpm) | 25-1700r/min |
| Spindle speeds | 16 |
| Dimension of worktable surface | 800×630×500mm |
| Dimension of base | 1200×2800mm |
| Overall height | 3050mm |
| Motor | 5.5KW |
| G.W./N.W. | 5180/5000kg |
| Ship measurement | 313×139×290cm |
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
