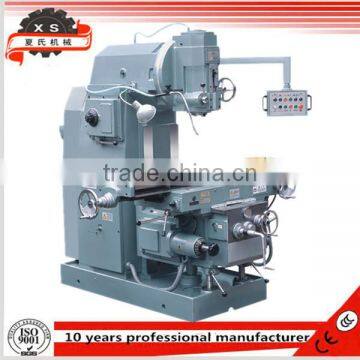

Universal heavy duty vertical milling machine X5042

FOB Price

USD $1,000 - $20,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangxi, China
Brand Name	XiaShi	Model Number	X5042
Type	Vertical	CNC or Not	Normal
Voltage	380v/50Hz	Power(W)	11kw
Dimension(LWH)	252222652432mm	Weight	5100kg
Certification	ISO9001,CE,3C	Warranty	1Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

X5042 Vertical Knee type Milling Machine
milling head swiveled by + _ 45 degree
Spindle quill can be moved
operated by hand

Main Characteristics & Application

Model X5042 is an multipurpose milling machine. It is suted for machining various parts with face milling cutters, cylindrical cutters, metal slotting saws, end mills, etc. All the slide ways adapted quality cast hardened to ensure high accuracy. With enough power and rigidity, hard alloy cutters can be used to process in high speed.

STANDARD EQUIPMENTS	OPTIONAL ACCESSORIES
Complete coolant system	2/3 axis DRO
2 sets arbor support	Machine Vice
Halogen machine lamp	Dividing head
Automatic central lubrication system	Rotary table
Cutter arbor φ32, φ50	Milling chuck
Foundation bolts and nuts	Slotting head

Main Specification:

Main Specification	Units	X5042
Table size	mm	420×1800
T slots (N×W×D)	mm	3×18×90
Longitudinal travel X	mm	1280/1250
Cross travel Y	mm	360/350
Vertical travel Z	mm	470/450
Feed speed steps		18
Feed speed ranges: Longitudinal X	mm/min	22~ 1100
Cross Y	mm/min	22~ 1100
Vertical Z	mm/min	8.3~ 410
Rapid feed ranges: Longitudinal X	mm/min	2400
Cross Y	mm/min	2400
Vertical Z	mm/min	900
Distance between spindle center to vertical guide way	mm	450
Distance between table center to column	mm	275~655
Spindle hole taper		7:24 50#
Diameter of spindle hole	mm	φ29
Arbor diameter	mm	φ32, φ50
Spindle speed steps		18
Distance from spindle end to table	mm	40-510
Quill travel	mm	85
Spindle speed ranges	r/min	30~1500
Max. rotary angle of vertical milling head		±45º
Feed motor power	kW	3
Main motor power	kW	11
Overall size	mm	2522×2265×2432
Packing dimension	mm	2460x2270x2650mm
Net weight	Kg	5100

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
