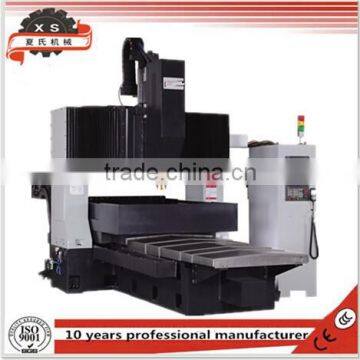

gantry double column type drill cnc milling machine center GDC1220
Negotiable
/ Set
1 Set(Min.Order)
- 0 per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | Xiashi | Model Number | GDC1220 | |
| CNC or Not | CNC | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
Feature
1.drill cnc milling machine, table 1250*1600mm
2.X,Y roller linear guideway,Z box guideway
3.straight platoon type 10 tools
Specification
| Specification | Units | GDC1216 | GDC1220 | GDC1230 |
| X-axis travel | mm | 1600 | 2000 | 3000 |
| Y-axis travel | mm | 1250 | 1250 | 1250 |
| Z-axis travel | mm | 500 | 500 | 500 |
| Worktable size | mm | 1250*1600 | 1250*2000 | 1200*3000 |
| Max.load of worktable | kg | 1600 | 2200 | 2400 |
| Number of T-slot | qty | 7 | 7 | 7 |
| Width of T-slot | mm | 22 | 22 | 22 |
| Distance between the adjacent T-slots | mm | 160 | 160 | 160 |
| Distance between the two columns | mm | 1600 | 1600 | 1600 |
| Distance from spindle nose to worktable surface | mm | 150-650 | 150-650 | 150-650 |
| Spindle taper | ISO NO.50 | ISO NO.50 | ISO NO.50 | |
| Feed speed | mm/min | 4000 | 4000 | 4000 |
| X,Y axis (rapid feed) | mm/min | 12000 | 12000 | 12000 |
| Z axis(rapid feed) | mm/min | 8000 | 8000 | 8000 |
| Spindle motor power(continuous / S6-60%) | kw | 12 | 12 | 12 |
| Spindle speed | rpm | 10-3000 | 10-4000 | 10-4000 |
| Torque of spindle | N.M | 230 | 230 | 230 |
| Positioning accuracy | mm | +/-0.015 | +/-0.015 | +/-0.015 |
| Repeat positioning accuracy | mm | 0.0075 | 0.0075 | 0.0075 |
| Machine weight | kg | 10000 | 11500 | 15000 |
Picture for your reference
