X6236A Universal Milling Machine Price with Swivel Head
US$ 10,000 - 20,000
/ Set
1 Set(Min. Order)
- Shanghai Shenzhen Guangzhou Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
-
Turret Type Milling Machine for sale X6323
-
CNC horizontal knee-type milling machine for sale XK6032
-
drilling and milling machine for sale ZX7550CW
-
ZX6332A universal drilling and milling machine with swivel head
-
EDM Hole Drilling Machinefor sale DD703.30
-
X6236A universal milling machine price with swivel head
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | XiaShi | Model Number | X6236A | |
| Type | Vertical | CNC or Not | Normal | |
| Voltage | Customer Requirement | Power(W) | 0.85/1.5kw | |
| Dimension(L*W*H) | 1210*1300*2150 | Weight | 1360/1540kg | |
| Certification | ISO9001,CE,3C | Warranty | 1Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
X6236A Universal Milling Machine Price with Swivel Head
Product Description
| Name | Universal Swivel Head Milling Machine |
| Model | X6236A |
| Spindle Taper | ISO 50 |
| Distance from Spindle to Column surface | 200-1000mm |
| Distance from Spindle Nose to Table Surface | 210-700mm |
| Max.Distance from Spindle Center to Table Surface(H) | 470mm |
| Distance from Spindle Center to Table Surface | 280-1160mm |
| Spindle Speed Range | 50-1500rpm |
| Table Size | 2000×360mm |
| Worktable Swivel Angle | 45° |
| Table Travel | 1600mm |
| Cross | 400mm |
| Vertical | 500mm |
| X,Y axis Feeding | 22.4-560mm/min |
| Z axis Feeding | 11.2-280mm/min |
| T-slots of Table | 3 |
| Width | 18mm |
| Distance | 80mm |
| Main Motor | 5.5kw |
| Feeding Motor | 1.1kw |
| Coolant Pump Motor | 120w |
| Overall Dimensions | 2600×1900×2100mm |
| Net Weight | 3980kg |

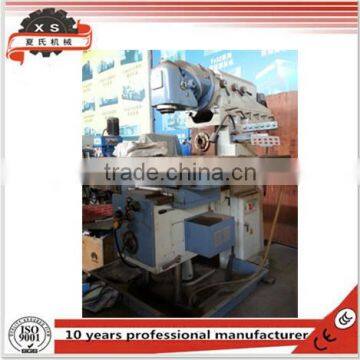

Detailed pictures for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
