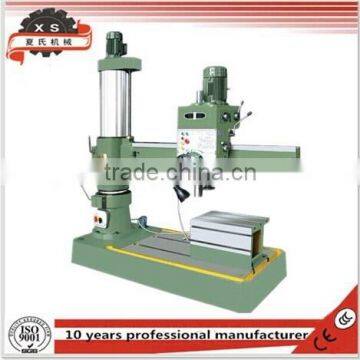

z3050x16/1 High quality radial drilling machine,mini drilling machine for sale
- 300 Piece / Pieces per Month
- SHENZEHN
- T/T Credit Card
You May Like
-
GMC1630 CNC Gantry milling machine, gantry type machine center
-
X6140 Universal Knee-type Milling Machine
-
BLZ-800 CNC Violence large vertical drill machine
-
XK7120 CNC Milling Machine
-
New Machinery-wise Cnc Medium Speed Wire Cut/electric Discharge Machine/edm With High Efficiency (BM250x120F)
-
Universal vertical/horizontal boring & milling machine TX706
Product Details
Condition | New | CNC or Not | Normal | |
Drilling Speed | 25-2000 | Place of Origin | Guangxi, China | |
Brand Name | XIASHI | Model Number | Z3050X16/1 | |
Voltage | 380V | Power(W) | 4kw | |
Dimension(L*W*H) | 2500X1060X2650mm | Weight | 3650/3400kg | |
Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
z3050x16/1 High quality radial drilling machine,mini drilling machine for sale
All controls centralized on the head stock easy operation and change.Clamping for assemblies and speed change of spindle achiered by hydrandic power,cmle is sensitne owet nelile.
Model | Z3040X16/1 Z3050X16/1 ZQ3050X20/1 |
Max.drilling capacity (mm) | 40,50,50, |
Distance spindle axis to column generating line (mm) | 350-1600,350-1600,350-2000 |
Diameter of column (mm) | 350 |
Spindle taper | MT4,MT5,MT5 |
Spindle travel (mm) | 315 |
Spindle speeds range (r/min) | 25-2000 |
Spindle speeds series | 16 |
Range of Spindle feeds (mm/r) | 0.04-3.2 |
Mpindle Spindle feeds | 16 |
Distance spindle nose to working surface of base (mm) | 350-1250,320-1220,320-1220 |
Dimension of worktable (mm) | 630X500X500 |
Dimension of base (mm) | 2400X1000X200 |
Overall size (mm) | 2500X1060X2650 2500X1060X2650 2900X1060X2650 |
Power of Main motor (kw) | 3,4,4 |
G.W/NW (kg) | 3650/3400,3650/3400,3850/3550 |
Packing dimension (cm) | 260X112X260 260X112X260 300X112X260 |
1. 24-hours technical support by E-mail or telephone
2. Provide extra accessories for the machine
Also provide service of make program according to your drawings
Customized or special design is OK.
3. All of our products’ warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
Contact
1.Our working time: 8:30am~5:30pm
2. All inquiries will be replied within 24 hours, So please feel free to send us your
inquiry.
3. when our trade manager is off line, please feel free to leave a message, and tell us the
products with model you are interested in, and your E-mail address, we will reply to you within
24 hours.
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
