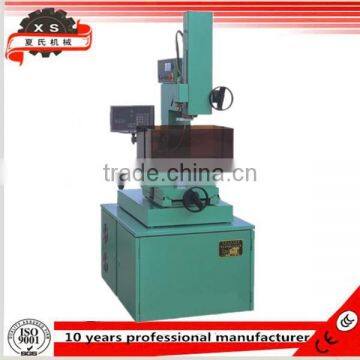

DK703 High Speed Small Hole EDM Drilling Machine
- 30 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Brand Name | BMW | Model Number | DK703A | |
| Voltage | 380V/50HZ | Dimension(L*W*H) | 920*950*1750mm | |
| Weight | 600kg | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
The speed of drilling hole is 30mm 60mm depth per minuter(it is different for different material)
Can drill small holes on the various conductive materials,especially stainless steel,chilled
steel,copper,aluminium and hard alloy etc.
Z axis with fixing function.
Can dill deep hole with diameters 0.3mm-3mm(thedepth-diameter ratio is 300:1)
Can dill wire-cut starting hole,filter hole,jet hole,gas hole,group holes and hole of super depth
etc.
Can drill on oblique and curved surface directly.
Can easily erode the drill and screw tap ect which is broken in the workplace and not destroy
the screw thread of the holes.
Technical parameter
| Model | DK703 | DK703A | DD703 | DD703A | |||
Dimensionofworkingtable(mm) | 320×440 | 320×440 | 400×600 | 400×600 | |||
Travelofworkingtable(mm) | 250×350 | 250×350 | 300×400 | 300×400 | |||
Zaxistravel(mm) | 350 | 350 | 350 | 350 | |||
Waxistravel(mm) | 300 | 300 | 300 | 300 | |||
Max.distancedirectortoworktable (mm) | 50-350 | 50-350 | 100-400 | 100-400 | |||
Max.machiningcurrent(A) | 30 | 30 | 30 | 30 | |||
Electrodediameter(mm) | φ0.3-φ3.0 | φ0.3-φ3.0 | φ0.3-φ3.0 | φ0.3-φ3.0 | |||
Loadoftable(kg) | 200 | 200 | 200 | 200 | |||
Workingliquid | Water | Water | Water | Water | |||
Powersupply | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | |||
Max.powerconsumption | 3.5 | 3.5 | 3.5 | 3.5 | |||
Machinedimensions(mm) | 920×950×1750 | 920×950×1750 | 1000×970×1800 | 1000×970×1800 | |||
Machineweight(kg) | 600 | 600 | 800 | 800 | |||
Digitaldisplay | Two-axisdigitaldisplay(optionalthree-axisdigitaldisplay) | ||||||
Functionofturning | No | Yes | No | Yes | |||
Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
