Product Details
| Place of Origin | Shanghai, China | Brand Name | SHYK | |
| Model Number | YK2BEA | Theory | Vacuum Pump | |
| Structure | Single-stage Pump | Usage | Other, Air Pump, gas pumping | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, electric | Pressure | High Pressure | |
| Application | Other, air pumping |
Product Description
2BEA series water ring vacuum pump is used to pump or compress air or other noncorrosive gas not dissoluble in water and not containing solid particles.
This high efficiency and economical power vacuum pump is integrating with the advanced technology of the imported products from Germany.
This series products adopt single stage and single action structure and have many advantages, such as compact structure, convenient maintenance, reliable running, high efficiency and economical power.
Comparing with the SK, 2SK, SZ series water ring vacuum pumps used widely in China at present, the 2BEA series products are the ideal replacements of them for high vacuum, low power, and running reliability.

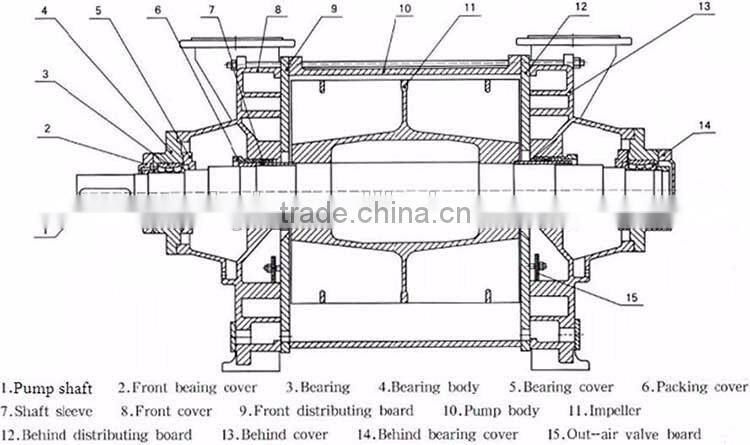

Structure:

Type | Speed | Shaft power | Motor power | E-Motor | Limited vacuum | Suction capacity | Weight | |
m3/h | m3/min | |||||||
2BEA 151-0 | 1450(D) | 10.8 | 15 | Y160L-4 | 33mbar | 405 | 6.8 | 469 |
2BEA 152-0 | 1450(D) | 12.5 | 15 | Y160L-4 | 33mbar | 465 | 7.8 | 481 |
2BEA 153-0 | 1450(D) | 16.3 | 18.5 | Y180M-4 | 33mbar | 600 | 10.0 | 533 |
2BEA 202-0 | 970(D) | 17 | 22 | Y200L2-6 | 33mbar | 760 | 12.7 | 875 |
2BEA 203-0 | 970(D) | 27 | 37 | Y250M-6 | 33mbar | 1120 | 18.7 | 1065 |
2BEA 252-0 | 740(D) | 38 | 45 | Y280M-8 | 33mbar | 1700 | 28.3 | 1693 |
2BEA 253-0 | 740(D) | 54 | 75 | Y315M-8 | 33mbar | 2450 | 40.8 | 2215 |
2BEA 303-0 | 740(D) | 98 | 110 | Y315L2-8 | 33mbar | 4000 | 66.7 | 3200 |
2BEA 305-1 | 740(D) | 102 | 132 | Y355M1-8 | 160mbar | 4650 | 77.5 | 3800 |
2BEA 353-0 | 590(D) | 121 | 160 | Y355L2-10 | 33mbar | 5300 | 88.3 | 4750 |
2BEA 355-1 | 590(D) | 130 | 160 | Y355L2-10 | 160mbar | 6200 | 103.3 | 5000 |
2BEA 403-0 | 330(V) | 97 | 132 | Y315M-4 | 33mbar | 5160 6470 | 86.0 | 5860 |
2BEA 405-1 | 330(V) | 100 | 132 | Y315M-4 | 160mbar | 6000 | 100.0 | 5980 |
Notes:
1."D" means "Direct drive"; "V" means "V-Belt drive".
2. The motor recommended above can work under most conditions. If the discharge pressure exceeds the scope of 0.02~0.05 Mpa(G), it is necessary to increase the motor power. If the shaft power corresponding with the work pressure of the 2BE series vacuum pump is lower, the motor with lower power closed to the shaft power can be used for saving energy.

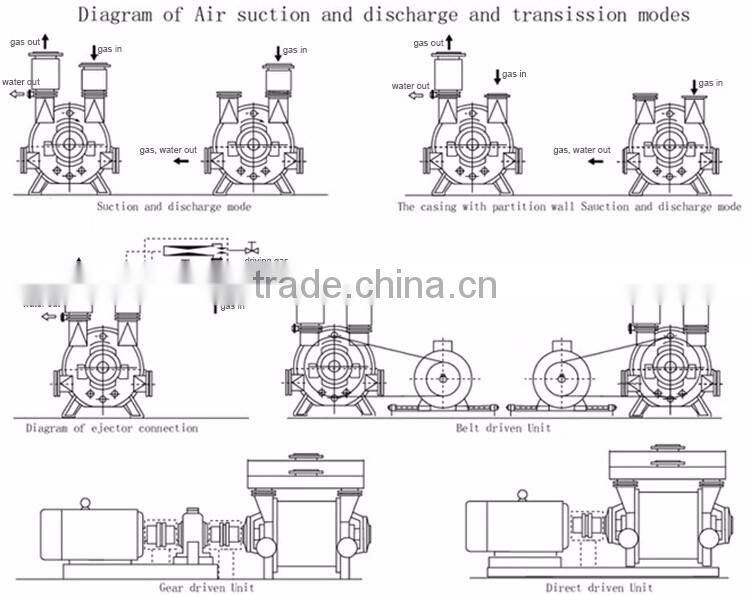

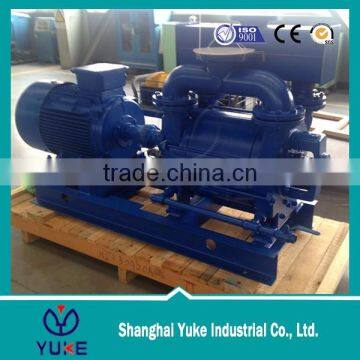

D (Direct drive) Type

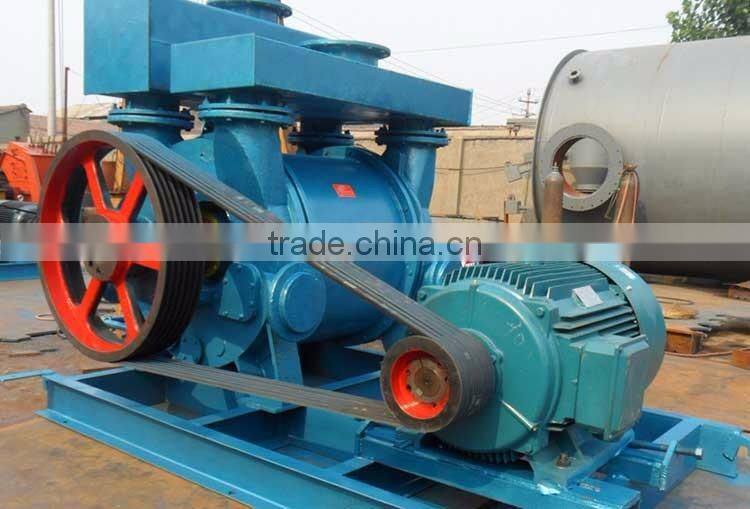

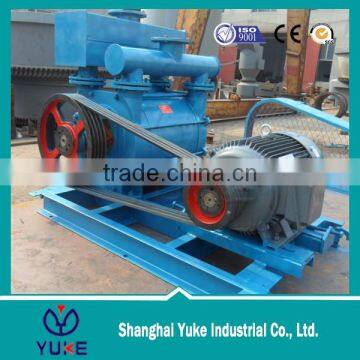

V (V-Belt drive) Type
1, All bearings adopt the imported products with Japanese NSK to ensure the precise orientation of impeller and high stability during the running.

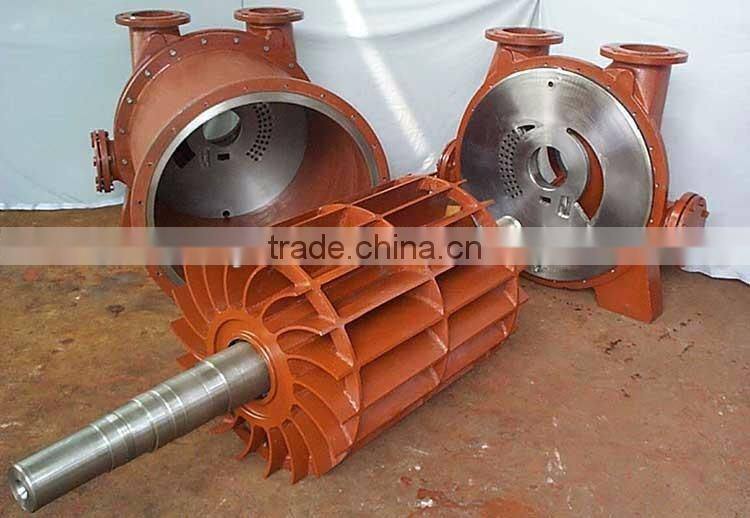

2, The material of the impeller is welded with nodular iron or steel to ensure the high stability and increase the lifetime of the pump greatly during any harsh conditions.
3, The pulley (when the pump is driven by the belt) adopts standard high precise taper bushing pulley to keep the reliable running and increase the lifetime; also it is easy to dismantle.
4, The coupling (driven directly) adopts standard high strength elastic product. The elastic element is made of polyurethane to keep the reliable operation and long lifetime of the pump.
5, The pump body is made of steel or stainless steel to increase the lifetime of the pump five times than normal material
6, The shaft sleeve as the most easily damaged part, our shaft sleeve is made of stainless steel to increase the lifetime of the pump 5 times than normal material.
7, Special separator built-on the pump can save the space and reduce the noise efficiently.
8, All the parts are cast by the resin sands with great quality, no puttying. Keep the heat dissipation is the best.
9, The mechanical seals (optional) adopt the imported parts to fully ensure the pump in the long-running process without leakage.

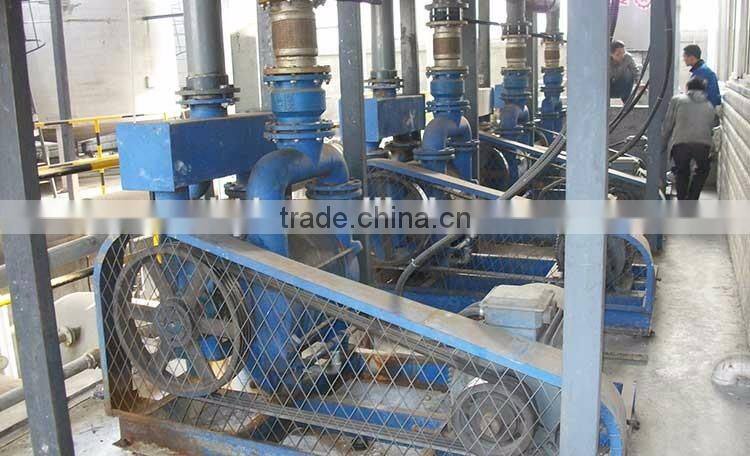

1. Vacuum Filter (water get rid)
Paper making, iron and mining, aluminum mining, phosphorous fertilizer.
2. Vacuum Distillation
Milk, Food, Chemical, Pulp
3. Vacuum Mold
Plastic, Rubber,Tire
4. Vacuum Immerge
Food machinery, Wood machinery, Weave and Woven, Plywood factory
5. Vacuum Disinfection
Hosipital, Laboratory, Asepsis room
6. Vacuum Water Suction
Potable Water factory, Discharge and Irrigation Station, Water Pump Suction and Discharge
7. Vacuum Air get rid
Bottle Filling factory, Food machinery, Food package
8. Vacuum Delivery
Cigerator factory, Tanking Making
Strong wooden box
Yuke is an ISO certified manufacturer of pumps for more than 20 years in China, The company now manufactures 3 categories pumps: industrial, agricultural and civil, including 100 kinds and more than 2000 models, The annual production capacity is more than 10,0000.
The main product of Yuke include:
Industry categories: clean water pumps, sewage pumps, resistant pumps, corrosion resistant pumps, vacuum pumps, oil pumps, etc.
Agricultural pumps are mainly for irrigation, including diesel motor type and electric motor type, with design of stationary or removable.
Civil: Solar pump series and the civil voltage pump.
Not only do we offer pumps, also we can provide you the pump solutions according to what your needs.
Yuke’s products, with excellent quality, reasonable price are exported to more than 20 countries and regions, such as middle east, south American, Africa, etc. Established long-term cooperation with lots of companies.
