Product Details
| Place of Origin | Shanghai, China | Brand Name | SHYK | |
| Model Number | YKSK | Theory | Vacuum Pump | |
| Structure | Single-stage Pump | Usage | Other, Air Pump, gas pumping | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, electric | Pressure | High Pressure | |
| Application | Other, air pumping |
Product Description
SK series water-ring vacuum pumps and compressors are used to suck or compress air and other gas that is non-corrosive, unsolvable in water and with no solid powder.
It is widely used in industry such as mechanical, petroleum, chemical, pharmaceutical, food, ceramics, sugar, printing and dyeing, metallurgy and electronics.
The air compression is operating under the constant temperature, it won't easily lead t any danger when the pump is suctioning or compressing any explosive gas. Therefore, the pump is widely accepted by most clients.
performance range:
| Working Principle: | Water ring vacuum pump |
| Driver: | Electric motor |
| Power Specs: | 380/415V 3phase; 220/240V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 50°C(122°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, aluminium/Cast iron, aluminium |
| Shaft seal type: | Mechanical seal, Packing seal |
| Free passage: | 0mm |
| Limited vacuum: | -0.094MPa(-0.94bar) |
| Maximum drive rating: | 185KW(250HP) |
| Maximum caliber: | 300mm(12inch) |
| Flow rate range: | 81-7200m3/h(356.4-31680US.GPM) |
Vacuum filtered (chemical filtration plant, chemical processing plants, iron ore plant, mining, phosphate fertilizer plant, paper mill, poultry processing plants, coal preparation plant)
Condenser water tank (power plant)
Vacuum distillation (milk plants, food plants, chemical plants, pulp mills)
Vacuum disinfection (hospitals, clinics, laboratories)
Extrusion (plastic industry)
Molding (plastic, polyethylene, rubber, tires and other manufacturing industries)
Impregnation (food processing, wood processing, textile mill, plywood plant, wire rod manufacturing, etc.)
Degassing liquids (food processing, water softening, bottling plant)
Compressed air regeneration (paper pulp, steel, automotive, glass, chemicals)
Food processing (food processing plants, dairies)
Vapor recovery (distillation, loading and unloading station)
Pump water (waterworks)
Drying (chemical, pharmaceutical manufacturing)
Wood treatment / drying
Pharmaceutical / laboratory vacuum
Solvent recovery
Soil decontamination
Vacuum packaging
extraction
Tannery
Canned
Notes: Air or gas contains a small amount of liquid is allowed
| Model | Flow m3/min | Ultimate Vaccum | Power kw | Speed | Pressure | OD mm | Water Consumption | ||||
| Max | flow at the vaccum of -450mmHg | mmHg | Mpa | vaccum pump | compressor | rpm | Mpa | inlet | outlet | L/min | |
| SK-0.15 | 0.15 | 0.12 | -650 | -0.087 | 0.75 | - | 2860 | 0-0.1 | 25 | 3-5 | |
| SK-0.4 | 0.4 | 0.36 | 1.5 | 1.5 | 4-6 | ||||||
| SK-0.8 | 0.8 | 0.75 | 2.2 | 2.2 | 6-10 | ||||||
| SK-1.5B | 1.5 | 1.35 | 4 | 4 | 32 | 8-12 | |||||
| SK-1.5 | 1.5 | 1.35 | 3 | 4 | 1450 | 70 | 10~15 | ||||
| SK-3 | 3 | 2.8 | -700 | -0.093 | 5.5 | 7.5 | 15~20 | ||||
| SK-6 | 6 | 5.4 | 11 | 15 | 970 | 80 | 20~30 | ||||
| SK-9 | 9 | 8.1 | 15 | 22 | 30~40 | ||||||
| SK-12 | 12 | 11 | 18.5 | 30 | 40~50 | ||||||
| SK-15 | 15 | 13.5 | 30 | 45 | 50~60 | ||||||
| SK-20 | 20 | 18 | 37 | 55 | 740 | 150 | 60~80 | ||||
| SK-30 | 30 | 28 | 55 | 75 | 70~100 | ||||||
| SK-42 | 42 | 37.2 | 75 | - | - | 95~130 | |||||
| SK-60 | 60 | 54 | 95 | - | 590 | 250 | 140~180 | ||||
| SK-85 | 85 | 79.5 | 132 | - | 180~220 | ||||||
| SK-120 | 120 | 110 | 185 | - | 300 | 220~260 | |||||

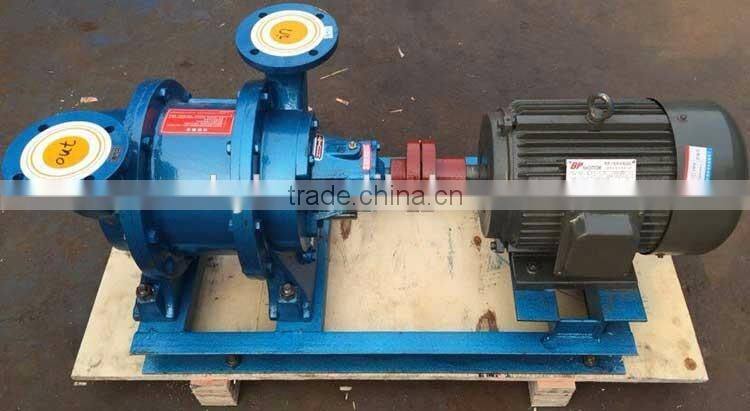

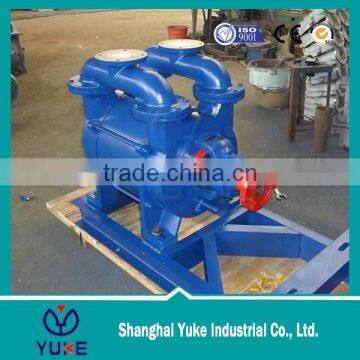

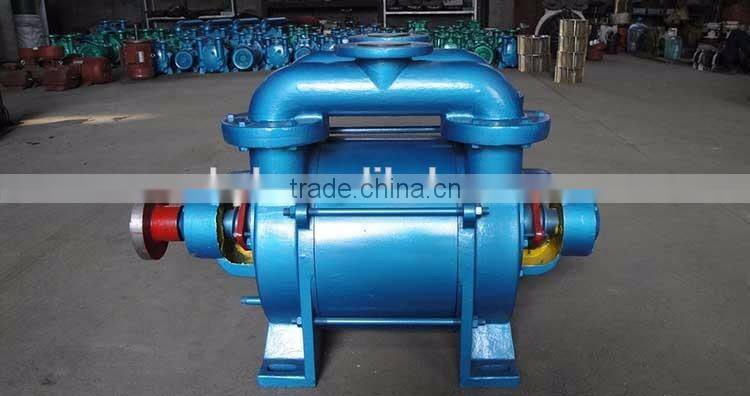

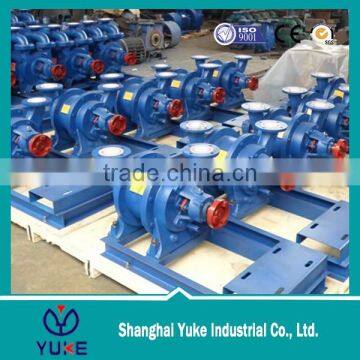

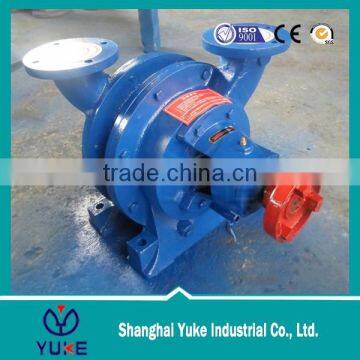

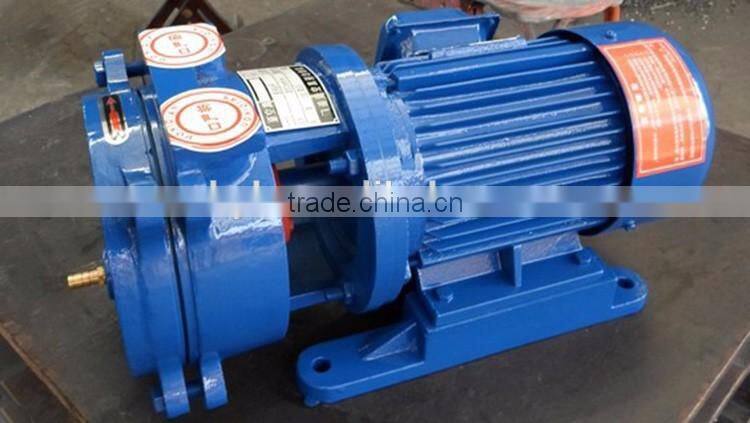

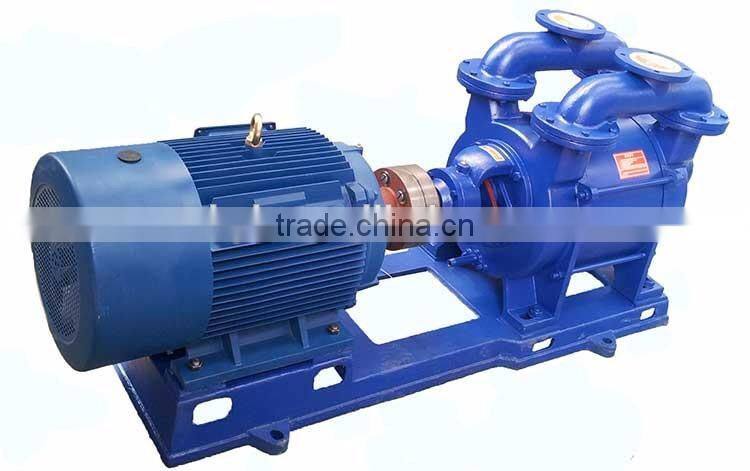

Photo reference for different model

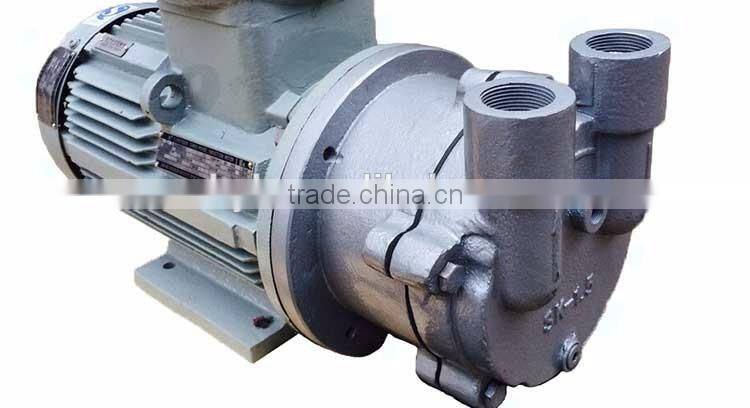

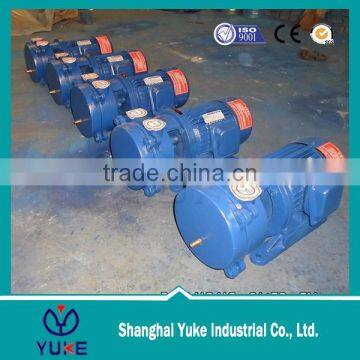

SK0.15 SK1.5B
SK0.4, SK0.8

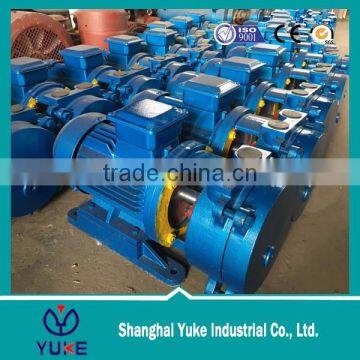

SK1.5 SK-3
SK6-SK120
strong wooden box

The main product of Yuke include:
Industry categories: clean water pumps, sewage pumps, resistant pumps, corrosion resistant pumps, vacuum pumps, oil pumps, etc.
Agricultural pumps are mainly for irrigation, including diesel motor type and electric motor type, with design of stationary or removable.
Civil: Solar pump series and the civil voltage pump.
Not only do we offer pumps, also we can provide you the pump solutions according to what your needs.
Yuke’s products, with excellent quality, reasonable price are exported to more than 20 countries and regions, such as middle east, south American, Africa, etc. Established long-term cooperation with lots of companies.
