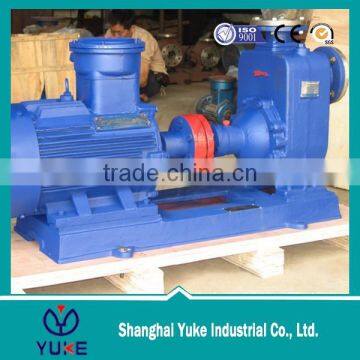

electric motor small self priming oil pump

FOB Price

US$ 300 - 5,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	SHYK
Model Number	YKCYZ	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Other, Oil, oil transfer
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, electric	Pressure	High Pressure
Application	Other, oil

Product Description

Description

CYZ series pumps is a explosion proof pump, with self-spriming about 5m. Has a simple structure, convenient operation and maintenance, stable operation, large displacement, high efficiency, easy to adjust, widely used, etc.

Working conditions:
Medium:sewage that contains fibre, solid particle and seston,industrial sewage,sea water and so on.
Medium temperature :≤90°c
PH of medium:general pump--6~9
stainless steel pump--4~10
Ambient temperature:≤40°c
Power:three-phase AC,50Hz

Performance range:

Flow:3.2~550m3/h
Head:20~75m
Power:1.1~132kw
Working pressure:≤1.0Mpa
Input/output diameter:25~300mm
Revoiving speed:1450r/min,2900r/min

Structure:

This kind of pump is axial liquid pump body structure, Pump body includes suction chamber, the liquid storage chamber, vortex chamber, the liquid hole, gas-liquid separation chamber, etc.
Pump bearings are single-row radial ball bearing. Cooling chamber is at the base of pump bearing, seal ring is inside of the pump. Shaft end adopts mechanical seal.

Application

Transfer gasoline, kerosene, diesel, kerosene and other petroleum products; methanol, ethanol, alcohol and other flammable and explosive liquid.
Land oil depot and oil tank truck, and other equipments of oil transportation.
Salt water and fresh water well, can be used as bilge pump, if this kind of pump were on the Titanic, it would not sink to the bottom of the ocean.

Parameter

Model	capacity		head (m)	suction (m)	rotary speed	self-priming performance	power (kw)		caliber(mm)
Model	(m³/h)	(L/S)	head (m)	suction (m)	(r/min)	(min/4m)	shaft power	motor power	inlet	outlet
25CYZ-A-20	3.2	0.9	20	6.5	2900	1.9	0.46	1.1	25	25
25CYZ-A-32	3.2	0.9	32	6.5	2900	1.8	0.8	1.5	25	25
40CYZ-A-20	6.3	1.8	20	6.5	2900	1.9	0.87	1.5	40	32
40CYZ-A-40	10	2.8	40	6.5	2900	1.5	2.7	4	40	32
50CYZ-A-12	15	4.2	12	6.5	2900	2.4	1.1	1.5	50	50
50CYZ-A-20	18	5	20	6.5	2900	1.9	1.8	2.2	50	50
50CYZ-A-30	20	5.6	30	6.5	2900	1.5	2.6	4	50	50
50CYZ-A-32	14	3.9	32	6.5	2900	1.5	2.7	4	50	50
50CYZ-A-40	10	2.8	40	6.5	2900	1.5	2.7	4	50	50
50CYZ-A-50	12.5	3.5	50	6.5	2900	1.4	4.3	5.5	50	50
50CYZ-A-60	15	4.2	60	6.5	2900	1.3	6.2	7.5	50	50
50CYZ-A-75	20	5.6	75	6.5	2900	1.3	9.8	11	50	50
65CYZ-A-15	30	8.3	15	6.5	2900	2	1.9	3	65	50
65CYZ-A-32	25	6.9	32	6	2900	1.5	4.4	5.5	65	50
80CYZ-A-13	35	9.7	13	6	2900	3.4	1.9	3	80	65
80CYZ-A-17	43	12	17	6	2900	1.8	3.1	4	80	65
80CYZ-A-22	40	11.1	22	6	2900	1.9	4.4	5.5	80	65
80CYZ-A-25	50	13.9	25	6	2900	1.5	5.2	7.5	80	65
80CYZ-A-32	50	13.9	32	6	2900	1.5	6.8	7.5	80	65
80CYZ-A-55	60	16.7	50	6	2900	1.5	15	18.5	80	65
80CYZ-A-70	60	16.7	70	6	2900	1.2	20.1	22	80	80
100CYZ-A-20	100	27.8	20	6	2900	1.8	7.8	11	100	100
100CYZ-A-40	100	27.8	40	6	2900	1.8	16.3	18.5	100	100
100CYZ-A-40A	100	27.8	32	6	1450	1.5	18.5	15	100	100
100CYZ-A-65	100	27.8	65	6	2900	1.8	27.7	30	100	100
100CYZ-A-75	70	19.4	75	6	2900	1.8	24.2	30	100	100
150CYZ-A-55	170	47.2	55	5	2900	1.8	39.2	45	150	100
150CYZ-A-65	170	47.2	65	5	2900	1.3	46.3	55	150	100
150CYZ-A-65A	170	47.2	65	5	1450	1.2	49.8	55	150	100
150CYZ-A-80	160	44.4	80	5	2900	1.2	53.6	55	150	100
200CYZ-A-32	400	111.1	32	5	1450	2	52.1	55	200	200
200CYZ-A-63	280	77.8	63	5	1450	1.5	73.9	90	200	200
200CYZ-A-65	350	97.2	65	5	1450	1.5	97.2	110	200	200
250CYZ-A-32	550	152.8	32	5	1450	2	72.3	75	250	250
250CYZ-A-50	400	111.1	50	5	1450	2	80	90	250	250
250CYZ-A-55	450	125	55	5	1450	2	102.1	110	250	250
250CYZ-A-75	400	111.1	75	5	1450	1.5	125.6	132	250	250
300CYZ-A-32	600	166.7	32	5	1450	2	79.2	90	300	300
300CYZ-A-50	500	138.9	50	5	1450	2	104.6	110	300	300
300CYZ-A-55	550	152.8	55	5	1450	2	117.6	132	300	300

Packing

Strong wooden box

Our factory

Yuke is an ISO certified manufacturer of pumps for more than 20 years in China, The company now manufactures 3 categories pumps: industrial, agricultural and civil, including 100 kinds and more than 2000 models, The annual production capacity is more than 10,0000.
The main product of Yuke include:
Industry categories: clean water pumps, sewage pumps, resistant pumps, corrosion resistant pumps, vacuum pumps, oil pumps, etc.
Agricultural pumps are mainly for irrigation, including diesel motor type and electric motor type, with design of stationary or removable.
Civil: Solar pump series and the civil voltage pump.
Not only do we offer pumps, also we can provide you the pump solutions according to what your needs.
Yuke’s products, with excellent quality, reasonable price are exported to more than 20 countries and regions, such as middle east, south American, Africa, etc. Established long-term cooperation with lots of companies.
