Home > Products > Pump > cheap price Centrifugal river dredging vertical slurry pump

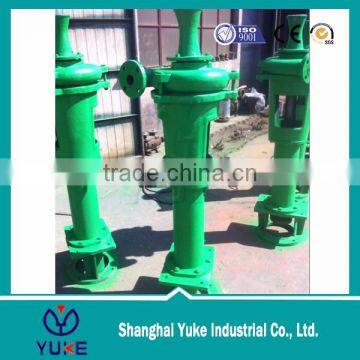

cheap price Centrifugal river dredging vertical slurry pump

FOB Price

USD $500 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 100000 Set / Sets per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	SHYK
Model Number	YKPN/YKPNL	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Other, Water, slurry transfer
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, electric	Pressure	Low Pressure
Application	Other, Dredging

Product Description

Description

PNL-type mud pump is a single stage, single suction, and vertical centrifugal slurry pump.

1. It is a long service life,simple structure,reliable performance pump.

2. Can be used to deliver the ore liquids.

3. The maximum density is 50-60% calculated by weight

Structure:

Feature

The pump flow passage component adopted with wear-resistant alloy material.
The space between the impeller and back plate can be adjusted in time to maintain its effectiveness.
The impeller adopts screw joint for the discharge diameter is below 6-inch, for the pumps with the discharge diameter above 8-inch use key joint.
Shaft seal use packing seal;Seal water with the working pressure is higher than 1kg/cm2 should be injected while working.
The pump has simple structure, reliable operation, easy maintenance, long service life etc. characters. It is suitable to transport liquid and solid in mine.

Application

coastal shoal farm’s excavation,
river dredging
diking
swale
transformation,
sand extraction,
the basic construction of farmland and underground works

Parameter

Model	flow m³/h	head m	speed r/min	NPSH m	eff %	power kw		weight (kg)	CAL mm
Model	flow m³/h	head m	speed r/min	NPSH m	eff %	P	kw	weight (kg)	inlet	outlet
1PN	7.2 12 16	14 13 12	1430	0.53	21 30 35	1.3 1.41 1.5	3	120	50	25
2PN	30 47 58	22 19 17	1450	1.32	33 39 39	5.45 6.25 6.9	11	150	96	50
2PNL	30 47 58	22 19 17	1450	1.32	33 39 39	5.45 6.25 6.9	11	250	62	53
3PNL	54 108 151	26 21 15	1470	2.35	32 42 37	12 14.7 16.7	22	450	125	75
3PN	54 108 151	26 21 15	1470	2.35	32 42 37	12 14.7 16.7	22	280	90	85
4PN	100 150 200	41 39 37	1470	2.95	46 55 61	24.3 29 33.1	55	1000	150	100
4PN(1)	41.5 80 111	51 50 49	1470	1.92	23 36 44.5	25 30.2 33.1	55	1000	150	100
4PN(2)	52 100 138	51 50 49	1470	2.2	26 37 47	28 37 39	75	1000	150	100
6PN	230 280 320	27 26 25	980	2.59	56 60 62	30.2 33 35.2	75	1200	200	150

Note: PN series is the horizontal type for PNL.

Packing

Strong wooden box

Our factory

Yuke is an ISO certified manufacturer of pumps for more than 20 years in China, The company now manufactures 3 categories pumps: industrial, agricultural and civil, including 100 kinds and more than 2000 models, The annual production capacity is more than 10,0000.

The main product of Yuke include:
Industry categories: clean water pumps, sewage pumps, resistant pumps, corrosion resistant pumps, vacuum pumps, oil pumps, etc.
Agricultural pumps are mainly for irrigation, including diesel motor type and electric motor type, with design of stationary or removable.
Civil: Solar pump series and the civil voltage pump.
Not only do we offer pumps, also we can provide you the pump solutions according to what your needs.
Yuke’s products, with excellent quality, reasonable price are exported to more than 20 countries and regions, such as middle east, suoth American, Africa, etc. Established long-term cooperation with lots of companies.
