Best Price Centrifugal Long Life Mining Slurry Pump

Parameter range:
Outlet Diameter: 25 mm to 450 mm (1” to 18”)
Capacity: to 22,000 gpm (6500 m3/hr)
Head: to 125 m (240 ft)
Pressures: to 2,020 kPa (300 psi)

Structure:

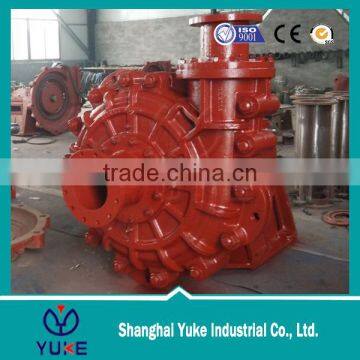

ZJ series slurry pump is the cantilever, double-hull suction horizontal centrifugal slurry pumps. The pump outlet position can be based on demand at 45 degrees intervals, rotating installation of eight different angles. pump seal packing seal can be used, vice impeller seals, packing plus auxiliary impeller seals, mechanical seals and other types.

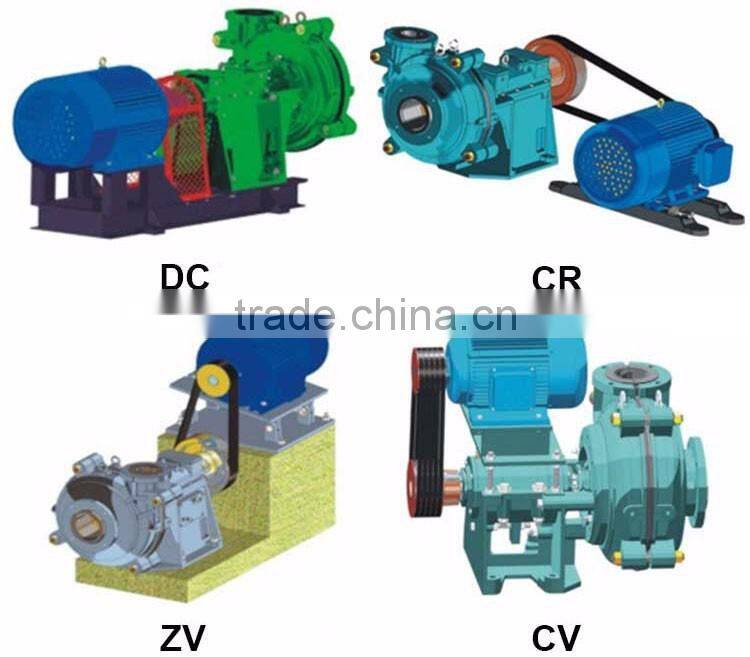

Different motor driven type:

DC Type: The output shaft of a motor is directly connected to the input shaft of a pump via a pump coupler. This type of connection is suitable for applications where the speed of the slurry pump is the same as that of the motor.
CV Type: The pump is driven by a belt connected to the crankshaft of the engine. This way of connection allows for saving space, easy installation, and fast adjustment of pumping speed. The motor is fixed to the motor support frame which is located on the bearing support above the slurry pump.
ZV Type: Another type of belt drive that allows easy adjustment of pumping speed. The motor is directly fixed to the bearing support. This way of installation is suitable for motors with larger horsepower than is possible with CV type of installation. Due to the installation of motor onto the bearing support, this method helps save installation space.
CR Type: This type of belt drive makes it easier to adjust pumping speed. The installation allows both the motor and slurry pump to be fixed to the ground. The motor is installed to the side of the pump. This installation method is suitable for large-power motors.

1. High chrome alloy lining allows for various abrasive material handling;
2. Large handling size means fewer clogged impellers;
3. Robust design allows it to be in difficult application environments;
4. High efficiency enables it save large energy;
5. Strong abrasive resistance material means long life cycle and low maintenance cost;
6. Replaceable wear metal liner means simple maintenance.

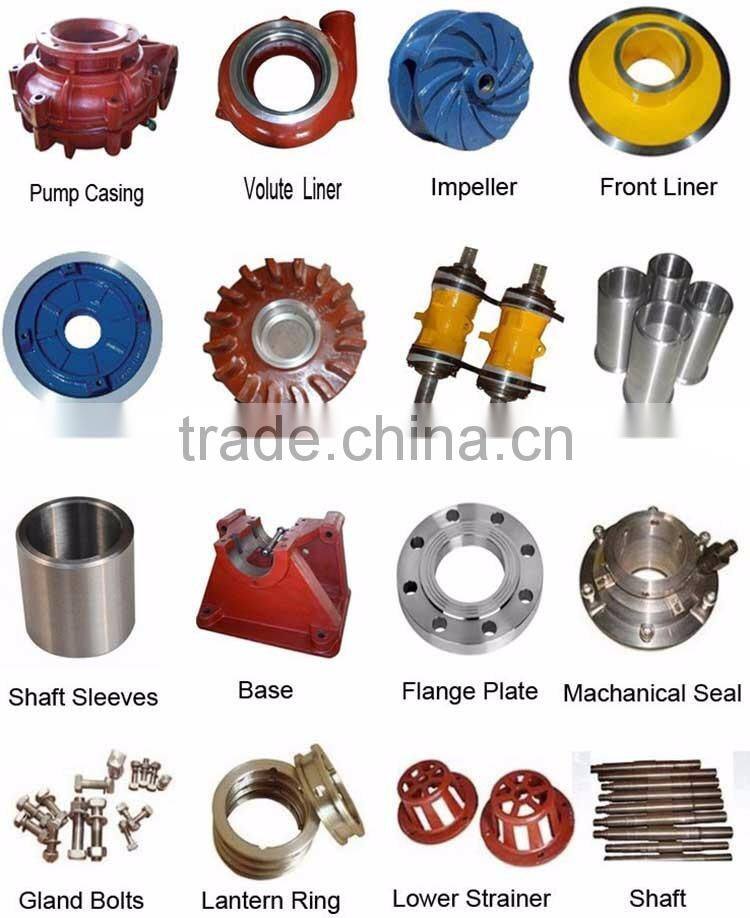

ZJ series pumps have replaceable wear-resistant pump metal liner, impeller wear corrosion resistant metal or rubber. Pump liner and impeller pump using only wear metal. Pump for conveying the small particle size, no sharp corners high concentration of slurry particles, but also can transport corrosive slurry.

Yuke is an ISO certified manufacturer of pumps for more than 20 years in China, The company now manufactures 3 categories pumps: industrial, agricultural and civil, including 100 kinds and more than 2000 models, The annual production capacity is more than 10,0000.
The main product of Yuke include:
Industry categories: clean water pumps, sewage pumps, resistant pumps, corrosion resistant pumps, vacuum pumps, oil pumps, etc.
Agricultural pumps are mainly for irrigation, including diesel motor type and electric motor type, with design of stationary or removable.
Civil: Solar pump series and the civil voltage pump.
Not only do we offer pumps, also we can provide you the pump solutions according to what your needs.
Yuke’s products, with excellent quality, reasonable price are exported to more than 20 countries and regions, such as middle east, south American, Africa, etc. Established long-term cooperation with lots of companies.
