Product Details
| Place of Origin | Shanghai, China | Brand Name | SHYK | |
| Model Number | YKPN/YKPNL | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, Water, slurry transfer | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, electric | Pressure | Low Pressure | |
| Application | Other, Dredging |
Product Description

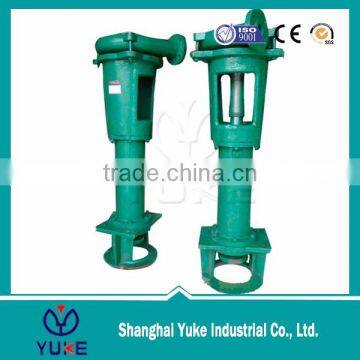

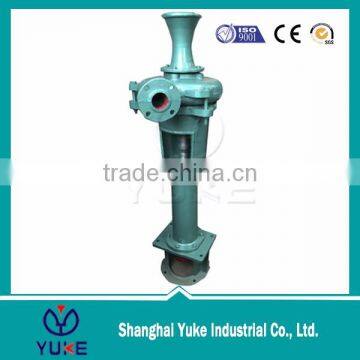

PNL-type mud pump is a single stage, single suction, and vertical centrifugal slurry pump.
1. It is a long service life,simple structure,reliable performance pump.
2. Can be used to deliver the ore liquids.
3. The maximum density is 50-60% calculated by weight.

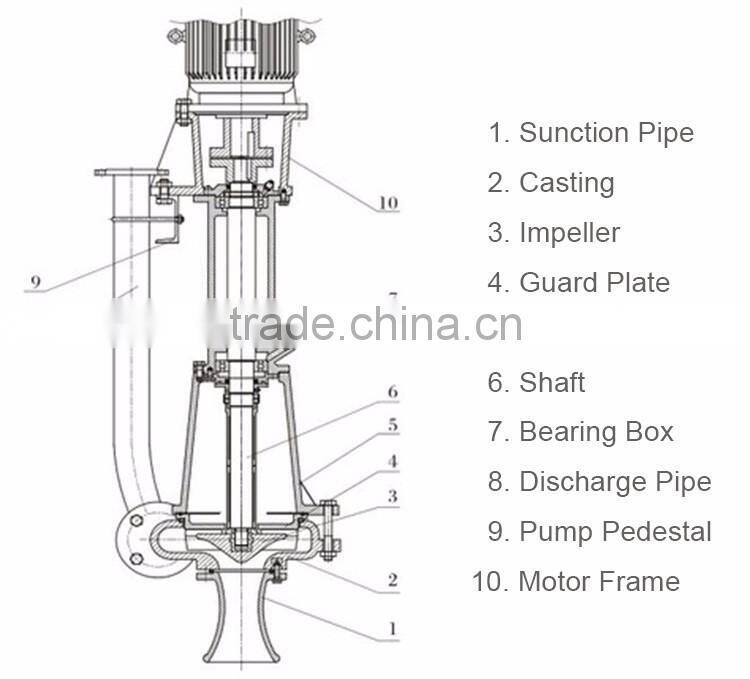

Structure:
- The pump flow passage component adopted with wear-resistant alloy material.
- The space between the impeller and back plate can be adjusted in time to maintain its effectiveness.
- The impeller adopts screw joint for the discharge diameter is below 6-inch, for the pumps with the discharge diameter above 8-inch use key joint.
- Shaft seal use packing seal;Seal water with the working pressure is higher than 1kg/cm2 should be injected while working.
- The pump has simple structure, reliable operation, easy maintenance, long service life etc. characters. It is suitable to transport liquid and solid in mine.
- coastal shoal farm’s excavation,
- river dredging
- diking
- swale
- transformation,
- sand extraction,
- the basic construction of farmland and underground works
Model | flow | head | speed | NPSH | eff | power | weight | CAL | ||
P | kw | inlet | outlet | |||||||
1PN | 7.2 | 14 | 1430 | 0.53 | 21 | 1.3 | 3 | 120 | 50 | 25 |
2PN | 30 | 22 | 1450 | 1.32 | 33 | 5.45 | 11 | 150 | 96 | 50 |
2PNL | 30 | 22 | 1450 | 1.32 | 33 | 5.45 | 11 | 250 | 62 | 53 |
3PNL | 54 | 26 | 1470 | 2.35 | 32 | 12 | 22 | 450 | 125 | 75 |
3PN | 54 | 26 | 1470 | 2.35 | 32 | 12 | 22 | 280 | 90 | 85 |
4PN | 100 | 41 | 1470 | 2.95 | 46 | 24.3 | 55 | 1000 | 150 | 100 |
4PN(1) | 41.5 | 51 | 1470 | 1.92 | 23 | 25 | 55 | 1000 | 150 | 100 |
4PN(2) | 52 | 51 | 1470 | 2.2 | 26 | 28 | 75 | 1000 | 150 | 100 |
6PN | 230 | 27 | 980 | 2.59 | 56 | 30.2 | 75 | 1200 | 200 | 150 |
Note: PN series is the horizontal type for PNL.

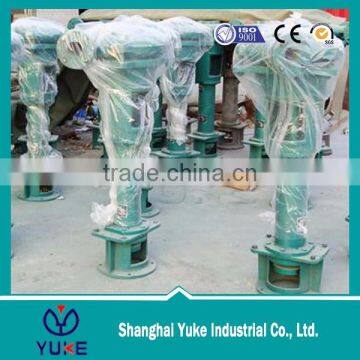

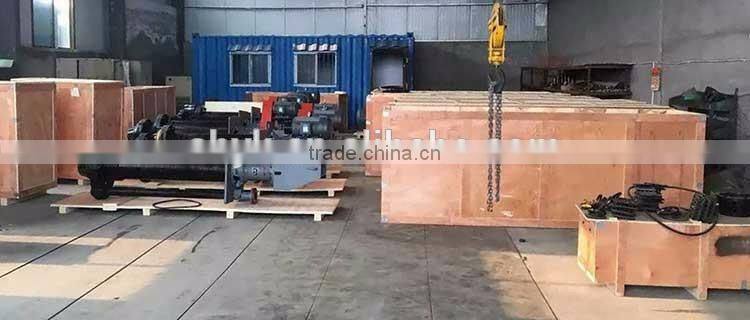

Strong wooden box

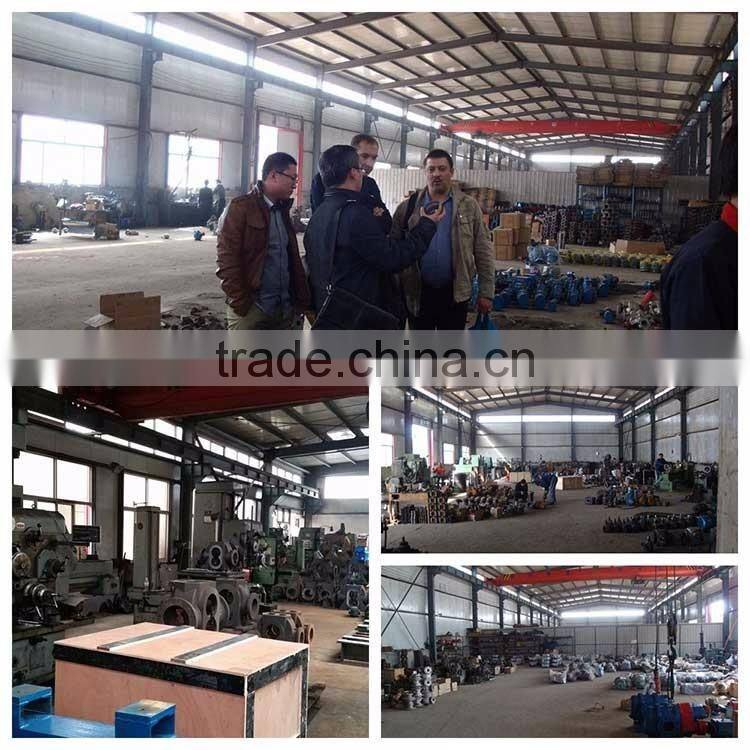

Yuke is an ISO certified manufacturer of pumps for more than 20 years in China, The company now manufactures 3 categories pumps: industrial, agricultural and civil, including 100 kinds and more than 2000 models, The annual production capacity is more than 10,0000.
The main product of Yuke include:
Industry categories: clean water pumps, sewage pumps, resistant pumps, corrosion resistant pumps, vacuum pumps, oil pumps, etc.
Agricultural pumps are mainly for irrigation, including diesel motor type and electric motor type, with design of stationary or removable.
Civil: Solar pump series and the civil voltage pump.
Not only do we offer pumps, also we can provide you the pump solutions according to what your needs.
Yuke’s products, with excellent quality, reasonable price are exported to more than 20 countries and regions, such as middle east, suoth American, Africa, etc. Established long-term cooperation with lots of companies.
