Home > Products > Pump > 12V/24V DC submersible Deep well solar water pump price

12V/24V DC submersible Deep well solar water pump price

FOB Price

USD $55 - $105 / Set

1 Set(Min.Order)

Supply Ability 100000 Set / Sets per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	SHYK
Model Number	YKYM1240/YKYM2440	Theory	Reciprocating Pump
Structure	Diaphragm Pump	Usage	Other, Water, Garden Fountain
Power	Hydraulic	Standard or Nonstandard	Standard
Fuel	Other, solar	Pressure	High Pressure
Application	Cryogenic

Product Description

Description

12V/24V DC submersible Deep well solar water pump price

The solution to your remote water pumping needs. This pump is rugged, durable and built to last. This pump delivers a steady 96 GPH (360 LPH) at its maximum depth of 230 feet (70M). Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering, irrigation, pond aeration, remote homes and 30M deep well.

Features:

For 4" wells or larger
Quick disconnect with "Watertight-Gland" Design Pat Pend
Corrosion-proof housing with stainless-steel fastener
Run dry without damage
State of the art solid diaphragm
Stainless Steel Fastener
Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
Motor: Permanent Magnet Thermally Protected
Internal Bypass: 105-110 PSI Max. (7.2-7.5 BARS)
Outlet Port: 1/2" (12.7mm) Barbed Fitting
Inlet: 50 Mesh Stainless Steel Screen
Material: High Strength Engineered Plastic

Specifications:

Model	Voltage	Amps
YKYM-24	24V DC	4.0A MAX
YKYM-12	12V DC	7.0A MAX

*Flow Rate: 6LPM

*Max Lift: 230 feet Maximum (70 meters);

*Recommended Lift: 0-50 meters

*Max Submersion:100 Feet Maximum (30 meters)

*Packing Size: 355*130*110mm

*N.W./G.W.: 2.9/3.0kgs

*Packing: 10pcs/Ctn.

*Wire Length: 3 meters

*WARRANTY: 12 Months

Drive Methods:

1. By normal DC12V power, like DC power supply/DC drive etc.

2. By 12V/24V solar powered system (Recommend with battery + Controller), Recommend Solar Panel: 130Watts or more. Recommend Solar Charger Controller: 12V/24V 15-20A

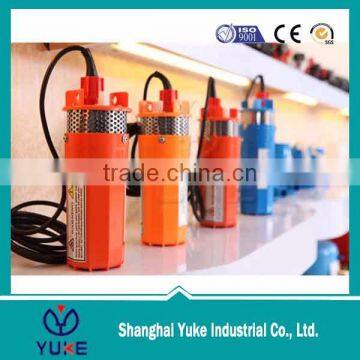

Product show

Spare parts

Water pressure show

Application

Solar powered water pumps can deliver drinking water as well as water for livestock or irrigation purposes.Solar water pumps is especially useful in small scale or community based irrigation.

Large scale irrigation requires large volumes of water that in turn require a large solar PV array. As the water may only be required during some parts of the year, a large PV array would provide excess energy that is not necessarily required, thus making the system inefficient.

Making process

Packing

Workshop show

Our company is a high-tech enterprise which is specialized in the R&D, production and sale of new energy solar products. We mainly supply brushless dc solar submersible water pump, solar panels, solar charge controller, solar cooling fan and other new energy solar products.
At present, our brushless dc solar water pump are exported to Europe, North America, South America, South Asia and other more than 50 countries and regions.

OEM and ODM services are both available. We would like to be your best supplier in China.
