FTTH ODF BOX 8/16 Cores outdoor FTTH fiber optic distribution box
USD $6.5 - $6.5
/ Piece
1 Piece(Min.Order)
- 0 per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | APT | |
| Model Number | OTB 16 |
Product Description
Product Description

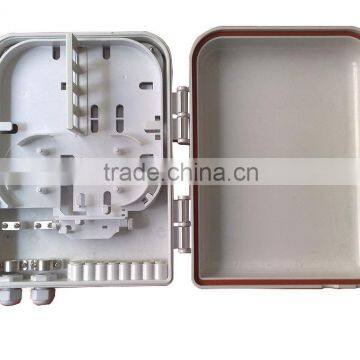

This type of FTTH Box is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. It has 2 input ports and 16 output ports at the bottom, and it is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.It also provides solid protection and management for the FTTx network building.
| Feature |
| 1) familiar industry interface and high impact plastic PC/ABS |
| 2) can equipped with 1x8 PLC splitter and 1x16 PLC splitter |
| 3) Ultra violet resistant and water-proof |
| 4) Up to 16 FTTH cores |
| 5) Wall and pole- mounted |
| 6) 2 input ports, 16 output ports |
| Specifications |
| Features |
| Industry Standard User Interface, be made of high impact plastic. |
| Can equip with 1x8 & 1X16 PLC splitter. |
| Ultra violet resistant and water proof. |
| Up to 16 FTTH drops. |
| Wall and pole mountable. |
| 2 inlet ports( for cables with max diameter 12mm), 16 outlet ports. |
| Protection class: IP 67 |
| ROHS compliance |
| Application |
| FTTH access network. |
| Telecommunication Networks |
| CATV Networks |
| Data communications Networks |
| Local Area Networks |
| MODEL | Port/Capacity | PLC Splitter | Dimension (WXDXH) | G.Weight |
| FTTH-OTB | 2 PORT,16 CORES | 1*4,1*8,1*16 | 220x300x80(mm) | 1.6 KGS |
