SC/UPC-SC/UPC fiber optic patchcord SM 3m

FOB Price

USD $0.81 - $0.9 / Piece

1 Piece(Min.Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	OEM
Model Number	SC/UPC

Product Description

Product information:

Single mode and multi mode SC fiber optic patch cables, SC-LC, SC-ST, SC-FC, SC-MU, SC-MTRJ, SC-E2000, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex, UPC, APC, PC. Customized design cables are available.

The SC fiber optic patch cord is one of the earliest type and one of the most commonly used fiber optic cable, it is convenient to use and cost saving, It is the most cheapest type fiber optic patch cable. SC fiber patch is widely uesed in fiber optic networks. SC fiber patch cable is with zirconia sleeve and plastic housing.

SC Fiber Optic Patch Cord Features:

♦ Low insertion loss.

♦ High return loss.

♦ High stability and reliability.

SC Fiber Optic Patch Cord Applications:

♦ FTTH, LAN, PON & Optical CATV

♦ Local ring net

♦ Optical fiber communication system

♦ Optical fiber test equipment

♦ Optical fiber sensor

Testing Data		Singlemode	Multimode
	Insert Loss	≤ 0.20dB	≤0.25dB
	Return Loss	≥ 50dB (PC)	PC≥35dB
		≥ 55dB (UPC)	UPC≥40dB
		≥ 60dB (APC)
	Durability	<0.20dB typical change, 1000 mating
	Operating Temperature	-40℃ to + 80℃	-40℃ to + 80℃
	Ferrule Hole Size	125.0+1/-0μm, Concentricity: ≤1.0μm	125μm, Concentricity: ≤3μm
		125.5+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: ≤3μm
		126.0+1/-0μm, Concentricity: ≤1.0μm	128μm, Concentricity: ≤3μm

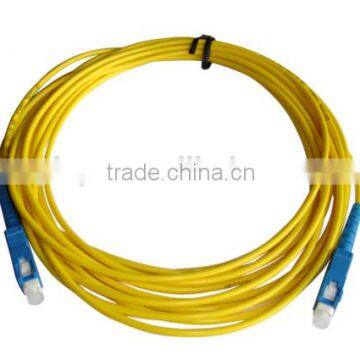

Picture:

If you want to know more above or similar products information,please do not hesitate to contact with me and my SKYPE is : jennyjenny2552.
