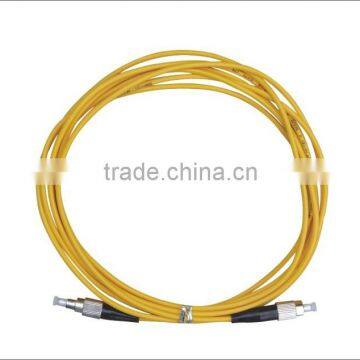

1.Summary

FC/UPC type fiber optic connector an detachable and movable connection device between optical fibers. External reinforcement is a metal sleeve, fastening means is the screw buckle, and the two plugs connected through the converter adapter. The connector has the advantages of simple structure, convenient operation, widely used in optical cable TV network.

2.Application

• CATV
• LAN and access network
• Telecom,Gigabit data network
• Medical equipments
• Industry and military applications

3.Feature

• Meet with ANSI, Bellcore, TIA/EIA, IEC etc international standards , also accord with the industrial standards of Telecom in China
• Realized the active link of optic fiber transmission
• Low insertion loss and high return loss
• Excellent repeatability and interchangeability

4.Technical data

• insertion loss: <=0.2db
• return loss: >=50db(upc type),>=55db(apc type)
• work temperature: -40℃~+80℃
• repeatability: <=0.1db
• interchangeability: <=0.2db
• plug times: >1000
• tensile strength: 50N

5.Ordering information

• Product name: fiber optic patchcord/pigtail
• Connector type : the frist interface: FC,SC,LC,MU,MT-RJ etc; the other interface: FC,SC,LC,MU,MT-RJ etc.
• Interface type: the frist one: UPC,APC; the other one: UPC,APC.
• Transmission mode: SM, MM.
• Fiber cores: single, dual
• Fiber diameter: Φ0.9,Φ2,Φ3 choosable
• Fiber length: user-defined
