Home > Products > fiber optic > fiber optic adapter FC/APC-FC/APC SM
fiber optic adapter FC/APC-FC/APC SM
- Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | OEM | |
| Model Number | FC/APC |
Product Description
product information
- Good Compatibility
- Accurate Mechanical Dimensions
- High Reliability and Stability
- Zirconia or Phosphor Bronze Sleeve
- Single mode, Multi-mode Versions
- Various Types of Connectors FC,SC,ST,MU,LC,MTRJ,MPO
- Low Splicing Loss
2.Application
- Telecommunication Network
- Testing Equipment
- Local Area Network(LAN)
- CATV
- Engineering Recovery
- FTTH
- Connect Different Types of Ceramic Ferrule Bores
3.Specification
- Insertion Loss
- Single Mode PC≤0.3dB,UPC≤0.2dB,APC≤0.2dB
- Multi-mode PC≤0.3dB
- Hybrid Adapter ≤0.3dB
- Female & Male Adapter ≤0.4dB(Both Ends)
- Stability ≤0.2dB
- Repeatability ≤0.2dB
- Frequency of Usage ≥1000 Times
- Operating Temperature Range -40°C ~ +80°C
4. Order Information
Common Adapters | |||
Connector Type | Ceramic Ferrule Bore End Face | Single mode/Multi-mode | Remark |
FC | PC/UPC/APC | SM/MM | Round, Square, Split Square, Rectangular |
SC | PC/UPC/APC | SM/MM |
|
ST | PC/UPC | SM/MM |
|
LC, MU | PC/UPC | SM/MM | Double |
MTRJ | PC/UPC | SM/MM |
|
Hybrid Adapters | |||
Connector Type | Ceramic Ferrule Bore End Face | Single mode/Multi-mode | Remark |
FC-SC | PC/UPC/APC | SM/MM |
|
FC-ST | PC/UPC/APC | SM/MM |
|
FC-LC | PC/UPC | SM/MM |
|
SC-ST | PC/UPC | SM/MM |
|
SC-LC | PC/UPC | SM/MM |
|
FC-MU | PC/UPC | SM/MM |
|

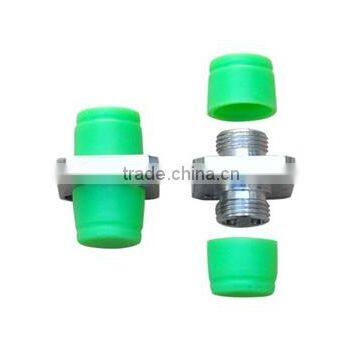

Product picture:
If you want to have more information about this above or similar products,please do not hesitate to contact with me ,my SKYPE ID is : jennyjenny2552.
Contact Us
- Qingdao Applied Photonic Technologies Co., Ltd.
- Contact nameapt liang Chat Now
- Phone86-532-86766721
- AddressNO.47 ,Tokyo Road,Qingdao Free Trade Zone, Qingdao, Shandong
