2*32 ABS box optical fiber PLC splitter

FOB Price

US$ 12 - 12 / Piece

1 Piece(Min. Order)

Port qingdao
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	APT
Model Number	SM

Product Description

1.Product Introduction
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management.

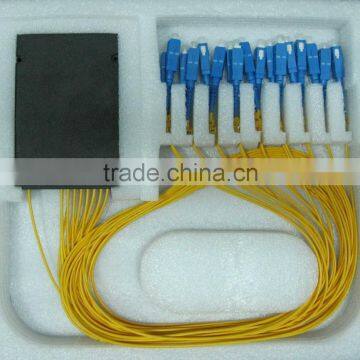

Cassette-type PLC splitter put PLC splitter chip and input/output array packaged in a samll box,which derivtived by fiber diameter up to 2mm or 3mm.fiber can be used for welding,can also be processing various types of optical fiber connectors.

Qingdao APT provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet YD/T1117-2001 All optical fiber branching device technical conditions ,YD-T 2000-209 PLC Integrated optical devices PLC optical power splitter>> etc, and are certified by TLC for network deployment.

2.Specifications
1*2,1*4,1*8,1*16,1*32,1*64(with/without connectors)
2*2,2*4,2*8,2*16,2*32,2*64(with/without connectors)

3. Performance and Technical parameters

Technical data	Specification(without connector loss)
work wavelength (nm)	1260-1650
type	1*4	1*8	1*16	1*32	2*4	2*8	2*16	2*32
Insertion loss (dB)	≤7.3	≤10.5	≤13.5	≤17.0	≤7.6	≤11.0	≤14.5	≤17.5
Uniformity (dB)	≤0.6	≤0.8	≤1.2	≤1.5	≤0.8	≤1.5	≤1.5	≤2.0
PDL(dB)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.2	≤0.4	≤0.4	≤0.4
Return loss (dB)	>50		directivity(dB)			>55
Work temperature (℃)	-40-+85		storage temperature (℃)			-40-+85

duct size(mm)

type	1*2	1*4	1*8	1*16	1*32
L×W×H	100×80×9	100×80×9	100×80×9	120×80×18	140×114×18
type	2*2	2*4	2*8	2*16	2*32
L×W×H	100×80×9	100×80×9	100×80×9	120×80×18	140×114×18

5.ordering information

product name	bare PLC splitter
specification	12,14,18,116,1*32,( with/without connectors)
specification	22,24,28,216,2*32,( with/without connectors)
quantity	user-defined
