1.Product Introduction

    PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.

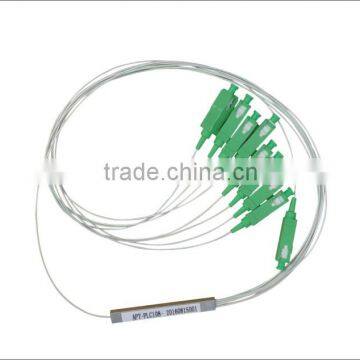

    Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber, fiber can be welded, can also be processing various types of optical fiber connector.
    Qingdao APT provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet <<YD/T1117-2001 All optical fiber branching device technical conditions>>,<<YD-T 2000-209 PLC Integrated optical devices PLC optical power splitter>>etc, and are certified by TLC for network deployment.

2.Application

• FTTH
• Monitoring
• CATV System
• Network Protection
• Access/PON Distribution

3.Feature

• Low Insertion loss
• Low PDL
• Compact Design
• Good channel-to-channel uniformity
• Wide Operating Wavelength:From 1260nm to 1650nm
• Wide Operating Temperature: From -40°C to 85°C
• High Reliability and Stability

4.Specifications

• 1*2,1*4,1*8,1*16,1*32,1*64(with/without connectors)
• 2*2,2*4,2*8,2*16,2*32,2*64(with/without connectors)

5.Performance and Technical parameters

duct size(mm)

7.ordering information
