Home > Products > fiber optic > PLC splitter 1*16 SC/APC 1m ABS
PLC splitter 1*16 SC/APC 1m ABS
- Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | OEM | |
| Model Number | ABS type |
Product Description
PRODUCT INFORMATION:
1. Features of 1x16 PLC Splitter for FTTH
LLow insertion loss, Low PDL and High reliability
-High return loss and Good repeatability
-Wide wavelength range
-Excellent channel-to-channel uniformity
2. Applications of 1x16 PLC Splitter for FTTH
-LAN,WAN and Metro Networks
-FTTH project & FTTX Deployments
-CATV System
-GPON,EPON
-Fiber Optic Test Equipment
-Data-base Transmit Broadband Net
3.PARAMETERS:
| Item | 1X16 |
| Fiber Type | G.657.A |
| Working Wavelength | 1260nm~1650nm |
| Standard Insertion Loss(dB) | ≤14.0 |
P-Grade Insertion Loss(dB) | ≤13.8 |
| Uniformity(dB) | ≤1.0 |
| PDL(dB) | ≤0.3 |
| Wavelength Dependent Loss(dB) | ≤1.0 |
| Return Loss(dB) | ≥50 |
| Directivity(dB) | ≥55 |
| Operating Temp.Gange | -40°C~+85°C |
4. Size for 1x16 PLC Splitter for FTTH
| Item | 1x16 |
| Length*Width*Height(mm) | 100x80x10/120x80x18 |
| Input | 2.0/3.0mm |
| Output | 2.0/3.0mm |
| Cable Length | 1m,1.5m,can be customized |

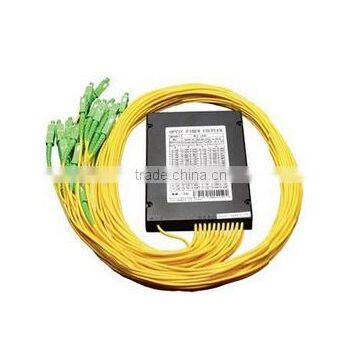

Picture:
If you have any inquiry for this product,please do not hesitate to tell us ,my SKYPE ID is : jennyjenny2552.
