1.Product Introduction

    Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management.

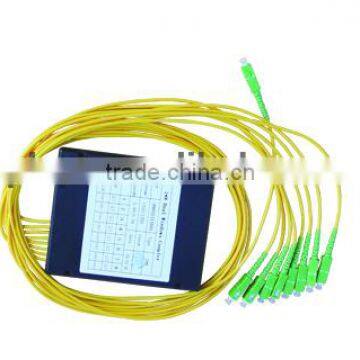

    Cassette-type PLC splitter put  PLC splitter chip and input/output array packaged in a small box, which derivtived by fiber diameter up to 2mm or 3mm. Fiber can be used for welding, can also be processing various types of optical fiber connectors.

    Qingdao APT provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet <<YD/T1117-2001 All optical fiber branching device technical conditions >>, <<YD-T 2000-209 PLC Integrated optical devices PLC optical power splitter>> etc, and are certified by TLC for network deployment.

2.Application

• FTTH
• Monitoring
• CATV System
• Network Protection
• Access/PON Distribution

3.Feature

• Low Insertion loss
• Low PDL
• Compact Design
• Good channel-to-channel uniformity
• Wide Operating Wavelength:From 1260nm to 1650nm
• Wide Operating Temperature: From -40°C to 85°C
• High Reliability and Stability

4.Specifications

• 1*2,1*4,1*8,1*16,1*32,1*64(with/without connectors)
• 2*2,2*4,2*8,2*16,2*32,2*64(with/without connectors)

5.Performance and Technical parameters

duct size(mm)

7.ordering information
