LC-LC OM3 optical fiber patchcord

lc Fiber Optical Patchcord with OM3 Corning Fber Cable

Fiber Type : 9/125  Corning fiber  Operating Wavelength: 1310 nm

Connector Type Polishing :  SC/UPC  SC/APC  LC/UPC LC/APC D4 MU  DIN   ST/UPC   E2000/UPC  E2000/APC  SMA  ESCON MTRJ

Fiber Cable Jacket Type: PVC /LSZH   Simplex/ Duplex   3.0mm/ 2.0mm/0.9mm

parameter:

Insertion  loss  ≤0.20dB,

Return   loss        UPC≥50 dB,  APC≥60 dB

Radius of curvature       nm   10 ≤ r ≥25

Curvature eccentricity    um   <50

Fiber core  undercut     nm   <50

Insertion loss change< 0.1,Return loss change< 5, No flab, No distortion

Repetitiveness (dB):       Insertion loss change<  0.1,Return loss change< 5

Insert & pull out    :      Max: 2KG

Tensile strength      dB   0-    10KG per minutes

Fully tested cables to ensure superior quality and durability

RoHS Compliant

Features:

Low insert loss; Good repeatability; Good changeability; Good temperature stabilization.

Mechanism Features: insert and pull frequency > 1000; Changeability(db) ≤ 0.20Tensile strength < 0.1; Ascillating  test < 0.1.

Condition Features: High temperature < 0.2; Low temperature < 0.2.

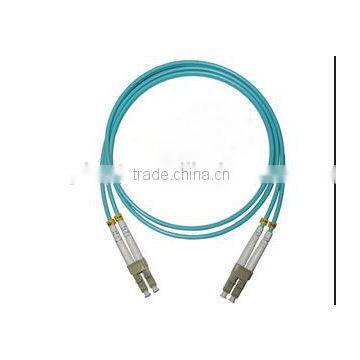

Picture:
