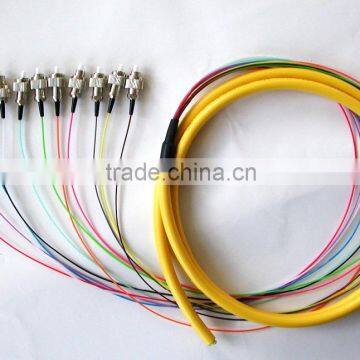

fiber optical bunch pigtial/ ribbon pigtial

1,summary

Bunch or Ribbon optical fiber connector used special separating device to separate the optic fiber ribbon(such as 12cores) which in the optic fiber cable and to protect the optic fiber, then process on the connecting plug, achieved separating connection in the optical distribution frame ( ODF ), widely used for the dense connections between transmission line and terminal equipments and fan-out connections between optical fiber ribbon cable and ODF frame

2,Application

1)CATV

2)  LAN and access network

3),Telecom,Gigabit data network

4)  medical equipments

5)Industry and military applications

3 ,Feature

1) meet with ANSI,Bellcore,TIA/EIA,IEC etc international standards ,also accord with the industrial standards of Telecom in China

2)Realized the active link of optic fiber transmission,and the multi core in a sheath, which is convenient for unified wiring management.

3)low insertion loss and high return loss

4)Excellent repeatability and interchangeability

4,Technical data

1)insertion loss:<=0.2db

2)return loss: >=50db(upc type),>=60db(apc type)

3)work temperature: -40℃~+80℃

4)repeatability:

5)interchangeability

6)plug times

7)tensile strength

5,Ordering information:

product name: fiber optic bunch/ribbon pigtail

connector type : the interface: FC,SC,LC,MU,MT-RJ etc;

interface type: the frist one: UPC,APC

Cores: 12 cores

Length:defined

6. Contact detailed information

 Amly

Mobile:86 15336398661

Tel:86 532 86767660

Skype: amlywu
