Home > Products > Mini Speaker Boxes Implanted > Cheap Multimedia Micro Speaker Box System Implanted P/N: YDT2840N-R001B08 (W32.0*L74.5*26.4)

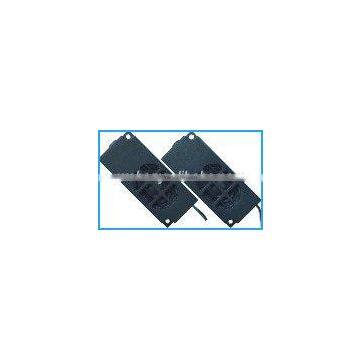

Cheap Multimedia Micro Speaker Box System Implanted P/N: YDT2840N-R001B08 (W32.0*L74.5*26.4)
Negotiable
/ Piece
2000 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
You May Like
-
Mini Speaker Box Implanted P/N YDT1425N-RB001B12 (W14.0*L36.0*9.0) for multimedia
-
Mini Speaker Box Implanted P/N YDT1635N-R002B16 (W17.8*L53.0*14.5) for multimedia
-
Mini Speaker Box Implanted P/N YDT1820N-R001B08 (W18.0*L42.8*17.0) for multimedia
-
Mini Speaker Box Implanted P/N YDT2828N-R001B08 (W30.0*L60.0*18.4) for multimedia
-
Small Computer Stereo Speaker Box Implanted P/N YDT2840N-R001B08 (W32.0*L74.5*26.4)
-
Micro Mylar Speaker Oblong P/N MD2030N-R002B08
Product Details
| Place of Origin | Guangdong, China | Brand Name | WBN | |
| Model Number | YDT2840N-R001B08 | Type | Speaker |
Product Description
Specifications
With completed box resonant, leadwires & connector, for multimedia devices with existing amplifier.SPECIFICATION DATA SHEET | |||
ITEM / DESCRIPTION | SPECIFICATION | REMARKS | |
| 1. Speaker with Resonant Box | Dimension: W32.0*L74.5*26.4 | ||
1.1 Speaker Drives | Mini Oblong Speaker P/N YT28N40-X8 | ||
1.2 Impedance | 8 Ohms +/-15% | @ 2KHz | |
1.3 Power Rated/Max | 2.0W/3.0W | 4.0V/4.9V | |
1.4 Sound Pressure Level | 90 +/- 3 dB | @ 0.3m/2.83V, Average of values at 1000, 1200, 1500, 2000Hz | |
1.5 Characteristic Sensitivity | 77 +/- 3 dB | Calculating value quivalent to 1m/1W | |
1.6 Frequency Resonant fo | 560Hz +/- 20% | @ 1.0V | |
1.7 Frequency Range | fo~20000Hz | @ 2.83V | |
| 2. Connecting Solution | 2 pcs of box connected with Lead Wires & Connector | ||
2.1 Lead Wires | UL 1007 26AWG, Parallel; Length 260+/-5mm Green & Black; Length 320+/-5mm Red & Black | Optional | |
2.2 Terminal | HSG: TU2001 HNO-04 WHITE(TYU); TER: TU2001 TPO-A(TYU) | Optional | |
| 4. Net Weight | |||
| 5. RoHs Compliant | Yes | ||
| 6. Packing Details | |||
| 7. FEATURES | Low fo, full range | ||
