Home > Products > Mylar Speakers FullRange > Thin Mylar Speakers 8 Ohm P/N MD15N-RB798 (D15.0*H5.2) With Spring Contact for Full Range Telecommunication

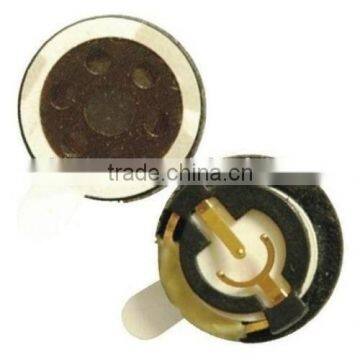

Thin Mylar Speakers 8 Ohm P/N MD15N-RB798 (D15.0*H5.2) With Spring Contact for Full Range Telecommunication
US$ 0.25 - 1.15
/ Piece
5000 Pieces(Min. Order)
- Shenzhen
- T/T
You May Like
-
Micro Mylar Speaker P/N MD16N-RB148 (D16.0*H4.17) for Full Range Telecommunication
-
Mini Mobile Phone Amplifier Speaker P/N MD17B-RB178-R2 (D17.0*H4.3) for Full Range Telecommunication
-
Micro Mylar Speaker P/N MD17N-RB198-R4 (D17.0*H4.0) for Full Range Telecommunication
-
Micro Mylar Speaker MD18B-RB048 (D18.0*H4.3) for Full Range Telecommunication
-
Micro Mylar Speaker P/N MD18N-RB088 (D18.0*H5.0) for Full Range Telecommunication
-
Advance Mini Phone Speaker P/N MD23N-RB496-R5 (D23.0*H4.0) With Fixing Contacts for Gamestations
Product Details
| Place of Origin | Guangdong, China | Brand Name | WBN | |
| Model Number | MD15N-RB798 | Type | Speaker |
Product Description
Specifications
Full range, with adhesive gasket, front cover & contact spring for radios, wirless telephones and other telecommunication setsSPECIFICATION DATA SHEET | ||||
ITEM | DESCRIPTION | SPECIFICATION | TESTING CONDITION | REMARKS |
1 | Overall Size | D15.0*H5.2 | ||
2 | Impedance | 8 ohms | 4~64 ohms available | |
3 | Power Rated (Max.) | 0.5 (0.8)W | ||
4 | Sound Pressure Level | 95 +/-3 dB | 0.1m/Power Rated | |
5 | Characteristic Sensitivity | 78 +/-3 dB | Calculated value equivalent to 1m/1W | |
6 | Resonant Frequency(fo) | 900Hz | ||
7 | Frequency Range | fo~20000Hz | ||
8 | Application | Multimedia | ||
9 | Diaphragm | PET | ||
10 | Frame | Plastic | ||
11 | Magnet | NdFeB | ||
12 | Features | Small Size, Full Range | ||
13 | Net Weight | |||
14 | RoHs Compliant | Yes | ||
15 | Packing Details | |||
