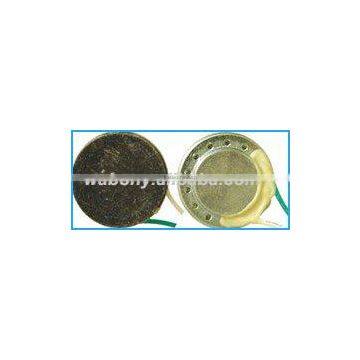

Micro Mylar Speaker P/N: MD13B-RB278-R2 (D 13.0*H3.6) for Full Range Telecommunication
US$ 0.45 - 0.8
/ Piece
2000 Pieces(Min. Order)
- Shenzhen
You May Like
-
Micro Mylar Speaker P/N MD20B-RB1832 (D20.0*H3.6) for Voice Communication
-
Micro Mylar Speaker P/N MD23B-RB0832 (D23.0*H3.3) for Voice Communication
-
Micro Mylar Speaker P/N MD26B-RB118 (D26.0*H4.7) for Voice Communication
-
Micro Mylar Speaker P/N MD27B-RB278-R1 (D27.0*H5.2) for Voice Communication
-
Micro Mylar Speaker P/N MD28B-RB488-R21 (D28.0*H4.6) With High-temperature Resistant Membrane for Voice Communication
-
Micro Mylar Speaker P/N MD30B-RB2832 (D30.0*H4.3) for Voice Communication
Product Details
| Place of Origin | Guangdong, China | Brand Name | N/A | |
| Model Number | MD13B-RB278-R2 | Type | Speaker |
Product Description
Specifications
Full range, with front cover for mobile phones and other telecommunication devices.SPECIFICATION DATA SHEET | |||
ITEM | DESCRIPTION | SPECIFICATION | TESTING CONDITION / REMARKS |
1 | Overall Size | D 13.0*H3.6 | |
2 | Impedance | 8 ohms | 4~64 ohms available |
3 | Power Rated (Max.) | 0.3 (0.5)W | |
4 | Sound Pressure Level | 87 +/-3 dB | 0.1m/Power Rated |
5 | Characteristic Sensitivity | 72 +/-3 dB | Calculated value equivalent to 1m/1W |
6 | Resonant Frequency(fo) | 900Hz | |
7 | Frequency Range | fo~20000Hz | |
8 | Application | Multimedia | |
9 | Diaphragm | PET | |
10 | Frame | Metal | |
11 | Magnet | NdFeB | |
12 | Net Weight | ||
13 | RoHs Compliant | Yes | |
14 | Packing Details | ||
15 | Features | Small Size, Full Range | |
