Home > Products > Oblong Speakers > Micro Mylar Speaker Oblong P/N MD2030N-RB018-R2 (W20.0*L30.0*H5.3) for Cellphones & Cameras

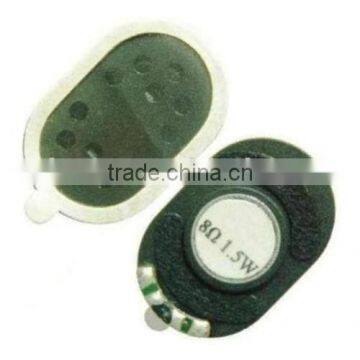

Micro Mylar Speaker Oblong P/N MD2030N-RB018-R2 (W20.0*L30.0*H5.3) for Cellphones & Cameras
Negotiable
/ Piece
5000 Pieces(Min. Order)
- Shenzhen
- T/T
You May Like
-
Micro Speaker Oblong P/N YDT2035N-RB10F8 (W20.5*L35.3*H9.8) for Laptops & LCDs
-
Micro Speaker Oblong P/N YDT2040N-RB09F32 (W20.0*L40.0*H8.5) for Laptops & LCDs
-
Micro Speaker Oblong P/N YDT2840N-RB23F45 (W28.5*L40.0*H11.9) for Laptops & LCDs
-
Micro Computer Woofer Speaker Price Oblong P/N YT29B40-X8 (W28.8*L40.2*H12.5) for Laptops & LCDs
-
Micro Earphone Wireless Speaker Oblong P/N YDT3070B-RB07F8 (W30.5*L70.3*H19.4) With Free-edge Membrane for Multimedia
-
Micro Speaker Oblong P/N YDT3560A-RB03F4 (W35.0*L58.0*H19.1) With Free-edge Membrane for Multimedia
Product Details
| Place of Origin | Guangdong, China | Brand Name | WBN, WBN | |
| Model Number | MD2030N-RB018-R2 | Type | Speaker |
Product Description
Specifications
With plastic frame oblong & mylar membrane for cellphones and cameras
SPECIFICATION DATA SHEET | |||
ITEM | DESCRIPTION | SPECIFICATION | TESTING CONDITION / REMARKS |
1 | Overall Size | W20.0*L30.0*H5.3 |
|
2 | Impedance | 8 ohms | 4~64 ohms available |
3 | Power Rated (Max.) | 1.5 (2.0) W |
|
4 | Sound Pressure Level | 92 +/-3 dB | @ 0.1m/Power Rated |
5 | Characteristic Sensitivity | 71 +/-3 dB | Calculated value equivalent to 1m/1W |
6 | Resonant Frequency(fo) | 900 Hz |
|
7 | Frequency Range | fo~12000 Hz |
|
8 | Application | Communication |
|
9 | Diaphragm | PET |
|
10 | Frame | Plastic |
|
11 | Magnet | NdFeB |
|
12 | Net Weight |
|
|
13 | RoHs Compliant | Yes |
|
14 | Packing Details |
|
|
15 | FEATURES | Slim with high power rated | |
