Home > Products > Multimedia Speakers > Micro Speaker P/N YDT4646A-RB03F8 (W49.0*L49.0*H21.1) With Concave Membrane for Multimedia

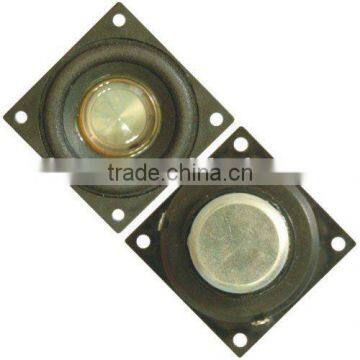

Micro Speaker P/N YDT4646A-RB03F8 (W49.0*L49.0*H21.1) With Concave Membrane for Multimedia
Negotiable
/ Piece
5000 Pieces(Min. Order)
- Shenzhen
- T/T
You May Like
-
Micro Receiver Dynamoelectric P/N SD20TH-RB24150 (D19.0*H3.0) for Telecommunication
-
Micro Speaker P/N YD40A-RC115F4
-
Micro Mylar Speaker P/N MD20B-RB528-R2 (D20.0*H4.5) for Telecommunication
-
Micro Mylar Speaker P/N MD23B-RB598 (D23.0*H4.0) for Telecommunication
-
Micro Mylar Speaker P/N MD28B-RB1198-R4 (D28.0*H5.2) With Mounting Supports for Telecommunication
-
Micro Mini Edifier Dynamic Mylar Speaker P/N MD28B-RB358 (D28.0*H5.4) With Free-Edge Membrane For Multimedia
Product Details
| Place of Origin | Guangdong, China | Brand Name | WBN | |
| Model Number | YDT4646A-RB03F8 | Type | Speaker |
Product Description
Specifications
With concave menbrane for multimediaSPECIFICATION DATA SHEET | ||||
ITEM | DESCRIPTION | SPECIFICATION | TESTING CONDITION | REMARKS |
1 | Overall Size | W49.0*L49.0*H21.1 | ||
2 | Impedance | 8 ohms | 4~64 ohms available | |
3 | Power Rated (Max.) | 2.5 (3.0) W | ||
4 | Sound Pressure Level | 86 +/-3 dB | @ 0.5m/1W | |
5 | Characteristic Sensitivity | 80 +/-3 dB | Calculated value equivalent to 1m/1W | |
6 | Resonant Frequency(fo) | 200 Hz | ||
7 | Frequency Range | fo~20000 Hz | ||
8 | Application | Multimeida | ||
9 | Diaphragm | Complex | ||
10 | Frame | Metal | ||
11 | Magnet | NdFeB | ||
12 | Features | Low fo, High Power Rated | ||
13 | Net Weight | |||
14 | RoHs Compliant | Yes | ||
15 | Packing Details | |||
