Home > Products > Mylar Speaker Mid.Range > Micro Mylar Speaker P/N MD50B-RB4425 (D50.0*H7.4) for Telecommunication

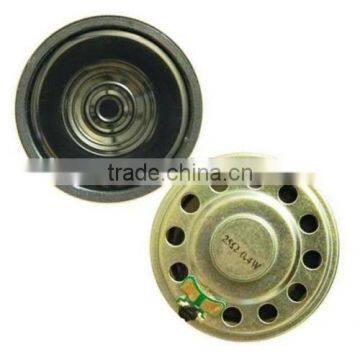

Micro Mylar Speaker P/N MD50B-RB4425 (D50.0*H7.4) for Telecommunication
Negotiable
/ Piece
5000 Pieces(Min. Order)
- Shenzhen
- T/T
You May Like
-
Micro Mini Edifier Dynamic Mylar Speaker P/N MD28N-RC2148
-
Micro Mylar Speaker P/N MD13B-RB278-R2 (D13.0*H3.6) for Full Range Telecommunication
-
Micro Mylar Speaker P/N MD13N-RB388-R3 (D13.0*H3.6) for Full Range Telecommunication
-
Micro Mylar Speaker P/N MD15B-RB588-R10 (D15.0*H3.8) for Full Range Telecommunication
-
Thin Mylar Speakers 8 Ohm P/N MD15N-RB798 (D15.0*H5.2) With Spring Contact for Full Range Telecommunication
-
Micro Mylar Speaker P/N MD16N-RB148 (D16.0*H4.17) for Full Range Telecommunication
Product Details
| Place of Origin | Guangdong, China | Brand Name | WBN | |
| Model Number | MD50B-RB4425 | Type | Speaker |
Product Description
Specifications
Half range, low frequency resonant, for small size devicesSPECIFICATION DATA SHEET | |||
ITEM | DESCRIPTION | SPECIFICATION | TESTING CONDITION / REMARKS |
1 | Overall Size | D50.0*H7.4 | |
2 | Impedance | 25ohms | 4~64 ohms available |
3 | Power Rated (Max.) | 0.2 (0.4)W | |
4 | Sound Pressure Level | 87 +/-3 dB | 0.3m/Power Rated |
5 | Characteristic Sensitivity | 84 +/-3 dB | Calculated value equivalent to 1m/1W |
6 | Resonant Frequency(fo) | 330 Hz | |
7 | Frequency Range | fo~11000Hz | |
8 | Application | Multimedia | |
9 | Diaphragm | PET | |
10 | Frame | Metal | |
11 | Magnet | NdFeB | |
12 | Net Weight | ||
13 | RoHs Compliant | Yes | |
14 | Packing Details | ||
15 | Features | Low fo | |
