Home > Products > Mylar Speakers FullRange > Advance Mini Phone Speaker P/N MD23N-RB496-R5 (D23.0*H4.0) With Fixing Contacts for Gamestations

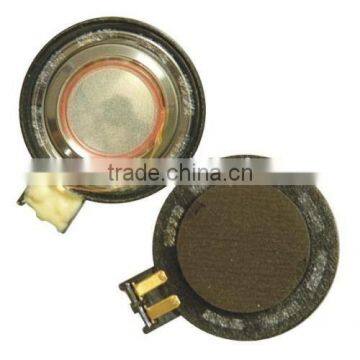

Advance Mini Phone Speaker P/N MD23N-RB496-R5 (D23.0*H4.0) With Fixing Contacts for Gamestations
US$ 0.2 - 1.15
/ Piece
5000 Pieces(Min. Order)
- Shenzhen
- T/T
You May Like
-
Micro Mylar Speaker P/N MD50N-RB168-R5 (D49.0*H6.2) for Multimedia
-
Micro Mylar Speaker P/N MD50B-RB458-R2 (D50.0*H8.3) for Full Range Telecommunication
-
Micro Mylar Speaker P/N MD50B-RC338-R3 (D50.0*H9.0) for Full Range Telecommunication
-
Micro Mylar Speaker P/N: MD13B-RB278-R2 (D 13.0*H3.6) for Full Range Telecommunication
-
Micro Mylar Speaker P/N MD20B-RB1832 (D20.0*H3.6) for Voice Communication
-
Micro Mylar Speaker P/N MD23B-RB0832 (D23.0*H3.3) for Voice Communication
Product Details
| Place of Origin | Guangdong, China | Brand Name | WBN | |
| Model Number | MD23N-RB496-R5 | Type | Speaker |
Product Description
Specifications
Half range, with fixing contacts for gameboy and other electronic game devices, telecommunication sets
SPECIFICATION DATA SHEET | ||||
ITEM | DESCRIPTION | SPECIFICATION | TESTING CONDITION | REMARKS |
1 | Overall Size | D23.0*H4.0 |
|
|
2 | Impedance | 6 ohms |
| 4~64 ohms available |
3 | Power Rated (Max.) | 0.13 (0.2)W |
|
|
4 | Sound Pressure Level | 91 +/-3 dB | 0.1m/Power Rated |
|
5 | Characteristic Sensitivity | 80 +/-3 dB |
| Calculated value equivalent to 1m/1W |
6 | Resonant Frequency(fo) | 730Hz |
|
|
7 | Frequency Range | fo~7000Hz |
|
|
8 | Application | Gameboy, Voice Communication |
|
|
9 | Diaphragm | PET |
|
|
10 | Frame | Plastic |
|
|
11 | Magnet | NdFeB |
|
|
12 | Features | Small Size, with Spring Contact |
|
|
13 | Net Weight |
|
|
|
14 | RoHs Compliant | Yes |
|
|
15 | Packing Details |
|
|
|
| ||||
