Home > Products > Mini Speaker Boxes Implanted > Micro Speaker Box Implanted P/N YDT1425N-R018B08

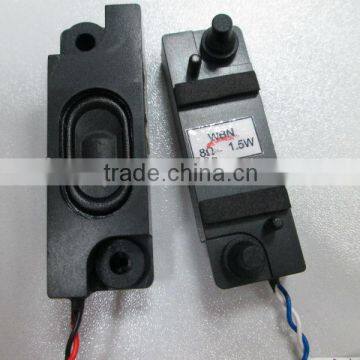

Micro Speaker Box Implanted P/N YDT1425N-R018B08
Negotiable
/ Piece
2000 Pieces(Min. Order)
- Shenzhen
You May Like
-
Micro Speaker P/N YDT2828N-R02F4 (W28.0*L28.0*H10.3) With Concave Membrane for Multimedia
-
Micro Speaker P/N YDT4646N-RB04F4 (W46.0*L46.0*H22.0) With Concave Membrane for Multimedia
-
Micro Speaker P/N YDT3232N-RB07F4 (W32.0*L32.0*H16.0) With Concave Membrane for Multimedia
-
Micro Speaker P/N YDT3434N-RB10F8 (W34.1*L34.1*H14.6) With Concave Membrane for Multimedia
-
Micro Speaker P/N YD40A-RB36F4-R1 (D40.0*H19.5) With Concave Membrane for Multimedia
-
Micro Speaker P/N YDT4646A-RB03F8 (W49.0*L49.0*H21.1) With Concave Membrane for Multimedia
Product Details
| Brand Name | WBN | Model Number | YDT1425N-R018B08 | |
| Type | Active | Use | Computer, Other | |
| Special Feature | Portable | Place of Origin | Guangdong, China |
Product Description
Specifications
With completed box resonant, leadwires & connector, for multimedia devices with existing amplifier.
SPECIFICATION DATA SHEET | |||
ITEM / DESCRIPTION | SPECIFICATION | REMARKS | |
| 1. Speaker with Resonant Box | Dimension: W14.0*L25* | ||
1.1 Speaker Drives | |||
1.2 Impedance | 8 Ohms +/-15% | @ 2KHz 1v Input | |
1.3 Power Rated/Max | Normal:1.5W Max:2.0W | 3.46V/4.24V | |
1.4 Sound Pressure Level | 80 dB±3dB | @ 0.3m/3.46V, Average at 800,1000,1200,1500 Hz | |
1.5 Characteristic Sensitivity | 80 dB±3dB | Calculating value quivalent at 1.0W 0.5M | |
1.6 Frequency Resonant fo | 580±20%Hz | @ 1.0V | |
1.7 Frequency Range | |||
| 2. Connecting Solution | 2 pcs of box connected with Lead Wires & Connector | ||
2.1 Lead Wires | UL 1571 26AWG | Optional | |
2.2 Terminal | HSG: JST PHR2.0 or CWB PH-4Y &JWT A 2001 | Optional | |
| 4. Net Weight | 16±20% g | ||
| 5. RoHs Compliant | Yes | ||
| 6. Packing Details | |||
| 7. FEATURES | Slim with high power rated | ||
