Home > Products > Mylar Speaker Mid.Range > Micro Mylar Speaker P/N MD28B-RB1198-R4 (D28.0*H5.2) With Mounting Supports for Telecommunication

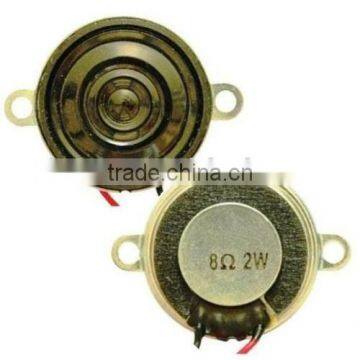

Micro Mylar Speaker P/N MD28B-RB1198-R4 (D28.0*H5.2) With Mounting Supports for Telecommunication
Negotiable
/ Piece
5000 Pieces(Min. Order)
- Shenzhen
- T/T
You May Like
-
Micro Mini Edifier Dynamic Mylar Speaker P/N MD28B-RB358 (D28.0*H5.4) With Free-Edge Membrane For Multimedia
-
Micro Mylar Speaker P/N MD34B-RB098 (D34.0*H4.2) for Telecommunication
-
Micro Mylar Speaker P/N MD36B-RB1564 (D36.0*H5.3) With Free-edge Membrane for Multimedia
-
Micro Mylar Speaker P/N MD40B-RB0250 (D40.0*H5.2) for Telecommunication
-
Micro Mylar Speaker P/N MD50B-RB4425 (D50.0*H7.4) for Telecommunication
-
Micro Mini Edifier Dynamic Mylar Speaker P/N MD28N-RC2148
Product Details
| Place of Origin | Guangdong, China | Brand Name | WBN | |
| Model Number | MD28B-RB1198-R4 | Type | Speaker |
Product Description
Specifications
Half range, with mounting supports for small size devicesSPECIFICATION DATA SHEET | ||||
ITEM | DESCRIPTION | SPECIFICATION | TESTING CONDITION | REMARKS |
1 | Overall Size | D28.0*H5.2 | ||
2 | Impedance | 8 ohms | 4~64 ohms available | |
3 | Power Rated (Max.) | 2.0 (3.0)W | ||
4 | Sound Pressure Level | 92 +/-3 dB | 0.3m/Power Rated | |
5 | Characteristic Sensitivity | 79 +/-3 dB | Calculated value equivalent to 1m/1W | |
6 | Resonant Frequency(fo) | 620Hz | ||
7 | Frequency Range | fo~12000Hz | ||
8 | Application | Communication | ||
9 | Diaphragm | PET | ||
10 | Frame | Metal | ||
11 | Magnet | NdFeB | ||
12 | Features | With mounting supports | ||
13 | Net Weight | |||
14 | RoHs Compliant | Yes | ||
15 | Packing Details | |||
